Feed Production Line 1.5 t/h — Single Dosing

An economical single dosing-scale system at 1.5 t/h — lower cost and simpler operation.

1.5 t/h Capacity

One bin + scale Dosing system

Pelleted Feed type

In short

Feed Production Line 1.5 t/h — Single Dosing An economical single dosing-scale system at 1.5 t/h — lower cost and simpler operation.

Capacity1.5 t/h
Dosing systemOne bin + scale
Feed typePelleted
Number of stages15 stages

From raw material to the sack

How the feed moves through the line

Every stage and its machine. Tap any machine for its specifications and sizes.

Intake and grinding

First screw conveyor See Screw Conveyors for Feed Mills

Moves raw material from the intake point to the feed bin.

Raw material bin See Feed Silos

Sits directly above the hammer mill and feeds it by gravity.

Feeder

Between bin and mill — it sets the feed rate so the mill neither chokes nor runs empty.

Hammer mill See Feed Hammer Mills

Grinds the raw material to the fineness the feed type calls for.

Dosing and mixing

Screw to the dosing bins See Screw Conveyors for Feed Mills

Takes the ground material from under the mill to the dosing bin.

One dosing bin See Feed Silos

The economical route: fewer bins and simpler running, with the same weighing accuracy.

Dosing scale See Feed Dosing Scales

In front of the bins rather than under them, fed by a screw from the bin.

Airlock See Airlocks for Feed Mills

Between scale and mixer when the scale sits above it — it stops air blowback.

Fitted when the scale sits above the mixer

Mixer See Feed Mixers

Blends the mix to full homogeneity.

Pressing and cooling

Transfer to the press See Screw Conveyors for Feed Mills

From the mixer to the press bin.

Screw or elevator — depending on a horizontal or vertical layout

Pellet press See Feed Pellet Mills

Turns the mix into pellets of the required size.

Cooler See Feed Coolers

Brings the pellet temperature down and sets its hardness.

Directly under the press, or fed by a belt depending on the layout

Crumbler For poultry feed See Feed Crumblers

Breaks the pellet down to chick size. Not fitted on cattle feed lines.

Finishing and bagging

Screen See Feed Screens

Sorts out the required size and returns fines to the press. Sits above the product bin.

Reached by elevator or belt — depending on capacity and layout

Bagging See Packing Machines for Feed Mills

By hand from under the product bin, or with an automatic bagging machine.

Manual or automatic

1.5 Ton/Hour Feed Production Line – 1-Batching System

A feed production line with a capacity of 1.5 tons per hour, relying on a single batching scale to weigh the raw materials before mixing. It covers grinding, mixing, pelleting, and cooling, with the option to add a crumbler when producing poultry feed.

Line Specifications

Specification	Details
Production capacity	1.5 tons/hour
Batching system	1-batching – one scale
Grinder	30 HP
Mixer	0.5-ton capacity – 200×72 cm
Pellet mill	Die size 250
Cooler	100 cm
Crumbler	60 cm – when needed
Finished product bin	2–3 tons

Production Line Components

First Screw Conveyor

Moves the raw materials from the receiving point to the grinder bin.

Raw Material Bin

Receives the raw materials and feeds the grinder located below it.

Feeder

Regulates the amount of material entering the grinder.

Grinder

Grinds the raw materials to the suitable size depending on the type of feed.

Grinder power: 30 HP.

Transfer Screw Conveyor

Moves the ground material from the bottom of the grinder to the batching area.

Batching Scale

Weighs the raw materials according to the ratios required in the mix.

The line relies on a single batching scale instead of a group of batching bins.

Air Gate

Used when the scale is installed above the mixer, and helps prevent air from flowing back while the material moves.

Mixer

Mixes the materials after they are weighed to obtain a homogeneous mix.

Mixer capacity: 0.5 ton – 200×72 cm.

Pellet Mill Bin

Receives the mix before it enters the pellet mill and helps feed the pellet mill.

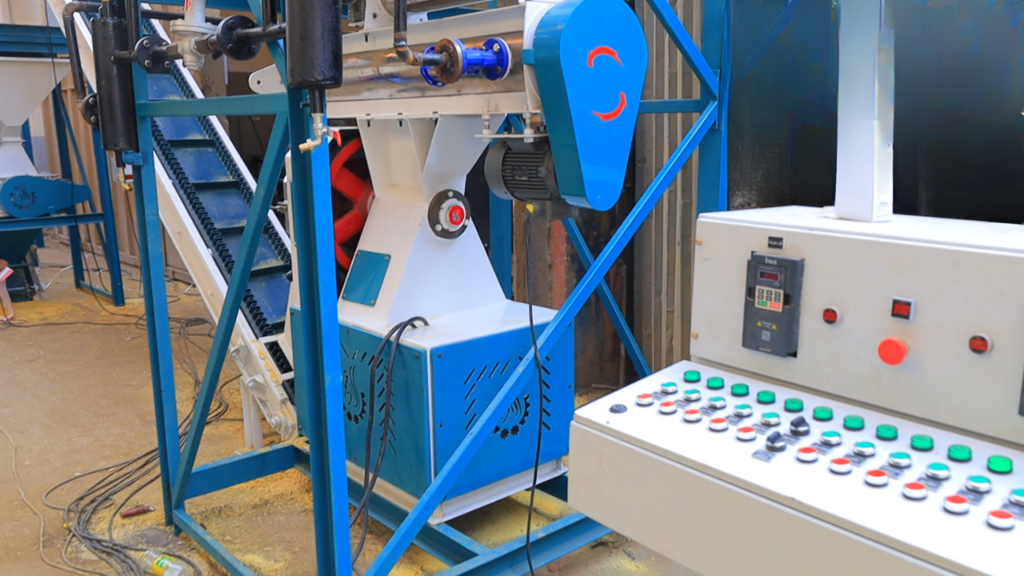

Pellet Mill

Turns the mix into feed pellets.

Die size: 250.

Conveyor to the Cooler

Moves the pellets leaving the pellet mill to the cooler.

Cooler

Lowers the temperature of the pellets after pelleting and helps reduce moisture before they move to the next stage.

Cooler size: 100 cm.

Crumbler – When Needed

Used when producing crumbled poultry feed, where it crumbles the pellets to the required size.

It is not needed when producing whole pellets.

Crumbler size: 60 cm.

Screener

Separates the fines from the final product, and the fines can be returned to the pellet mill depending on the line design.

Finished Product Bin

Receives the product after the processing stages are complete, with a capacity of 2–3 tons.

How the Line Works

The material moves through the line in the following order:

Receiving materials → Grinding → Batching and weighing → Mixing → Pelleting → Cooling → Crumbling when needed → Screening → Finished product bin

The final equipment layout is determined according to the plant area and the line design.

The 1-Batching System

This line relies on a single batching scale to weigh the materials before mixing.

This design reduces the number of batching bins required and makes the line simpler in terms of equipment layout and operation.

How the scale is used and where it is placed are determined according to the line design and the plant area.

Producing Pellets or Crumbled Feed

The line can be run to produce feed pellets.

When producing crumbled poultry feed, a crumbling stage is added after cooling.

So:

Whole pellets:

Pelleting → Cooling → Screening → Final product

Crumbled poultry feed:

Pelleting → Cooling → Crumbling → Screening → Final product

Line Design According to the Plant Area

The equipment does not have to be arranged the same way in every plant.

The equipment layout is determined according to:

The plant area.
The building heights.
The location of the raw materials.
The location of the finished product.
How material moves inside the line.

Once the project area is known, the suitable equipment layout can be determined.

Who Is This Line Suitable For?

This line is suitable for projects that aim to produce about 1.5 tons of feed per hour and need a single-batching system.

The final line configuration is determined according to:

Required capacity + Type of feed + Raw materials used + Plant area.

What Does Building the Line Include?

Depending on the project scope and the agreement, building the line can include:

Manufacturing the equipment.
Installing the line.
Commissioning.
Training the workers.
After-sales service.
Supplying spare parts.

The details of the work are set out in the project's price quotation.

Request a 1.5 Ton/Hour Production Line Design

If you are planning to build a feed mill with a capacity of 1.5 tons/hour, send us:

Plant area + Type of feed + Required capacity

and we will determine the suitable equipment layout and the line components required for your project.

Al-Adham Feed Equipment Factory

Technical data

Line specifications

Specification	Value
Capacity	1.5 t/h
Dosing system	One bin + scale
Feed type	Pelleted
Number of stages	15 stages

Why this line

What it gives you

The lowest-cost, simplest line to run, with the same weighing accuracy.
Continuous running with no stops between stages.
Designed around your floor area and layout, horizontal or vertical.
Every machine built in our own works — spare parts always available.
Installation, commissioning, operator training and after-sales follow-up.

Want a line like this?

Send us your floor area and the capacity you need, and we will come back with a drawing and a price.
