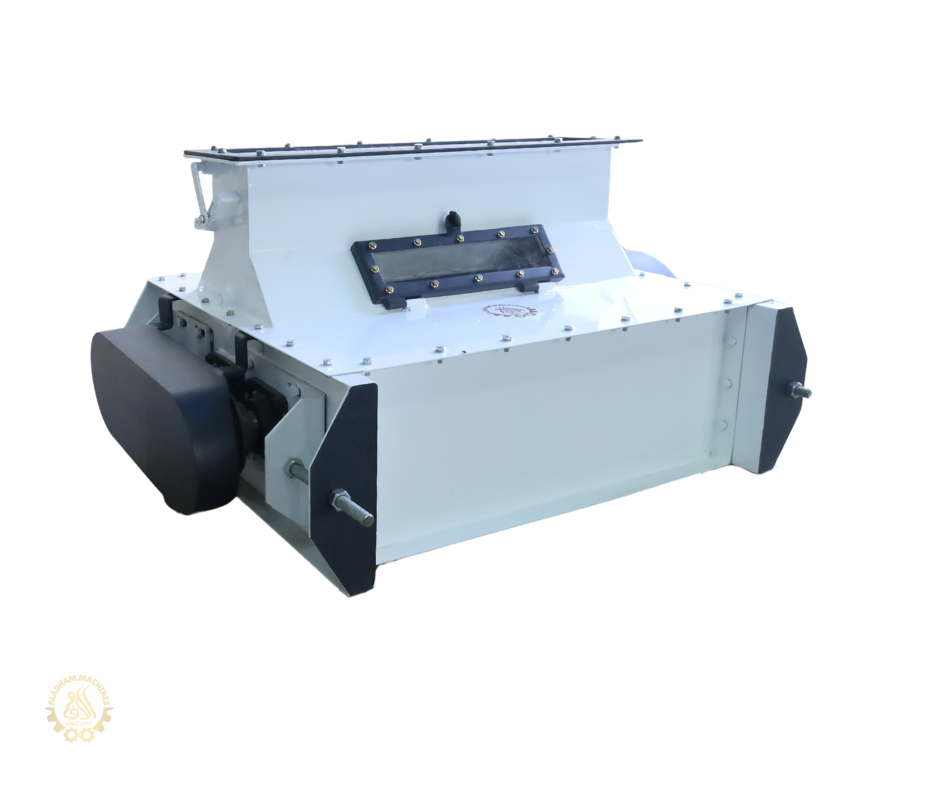

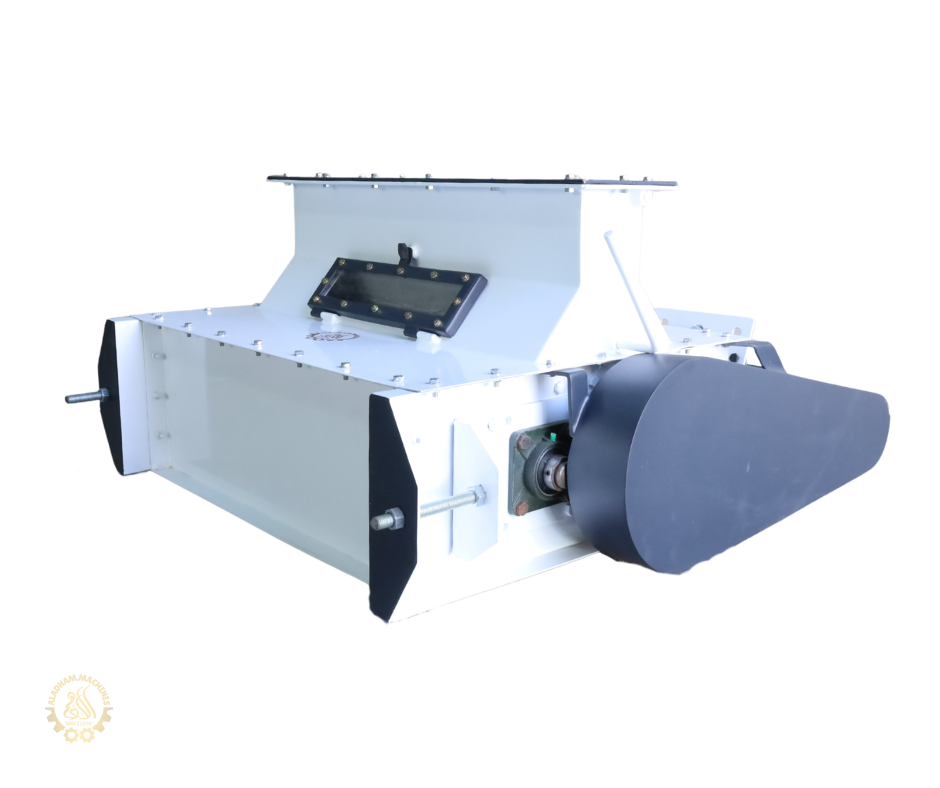

Feed Crumbler 60 cm

A 60 cm feed crumbler with a 3 hp motor for 1.5 t/h lines. Roller Ø17 cm, hollow tube with a 10 mm wall.

In short

Feed Crumbler 60 cm is manufactured by the Al-Adham Feed Equipment Factory (code P022). A 60 cm feed crumbler with a 3 hp motor for 1.5 t/h lines. Roller Ø17 cm, hollow tube with a 10 mm wall. Used in Producing crumbled feed in the right sizes, Poultry feed and early rearing stages.

  • نوع المعدةمفتت أعلاف (كرامبلر)
  • المقاس60 سم
  • قطر الدرفيل17 سم
  • نوع الدرفيلماسورة مجوّفة بسمك 10 ملى

Feed Crumbler 60 cm

A 60 cm feed crumbler with a 3 hp motor, working after the pellet mill and cooler to break pellets to the size each growth stage needs.

Who it is for

The crumbler is for poultry feed: a chick cannot swallow a pellet sized for a grown bird, so the pellet is broken down to the size each growth stage needs. On cattle lines the crumbler is usually skipped.

The roller

A roller Ø17 cm, a hollow tube with a 10 mm wall. Light enough for a 3 hp motor.

Which line

Standard on 1.5 t/h lines. Larger sizes built to order.

Motors are GAMAK (Türkiye) as standard. German or Italian brands can be supplied on request, with the quotation adjusted accordingly.

Warranty

The steel structure carries a ten-year warranty. Wear parts — hammers, dies and press rollers — carry one year, since they are replaced through normal use. Motors carry their own manufacturer’s warranty.

Tell us your line capacity and feed type and we will recommend the right size. Request a quote.

  • نوع المعدة: مفتت أعلاف (كرامبلر)
  • المقاس: 60 سم
  • قطر الدرفيل: 17 سم
  • نوع الدرفيل: ماسورة مجوّفة بسمك 10 ملى
Request a Quote All Products
3D model

Explore the machine from every angle

Drag with the mouse to rotate, scroll to zoom

The model rotates automatically — click and drag to control it
Technical specifications

Every product detail in one table

Specification Value
نوع المعدة مفتت أعلاف (كرامبلر)
المقاس 60 سم
قطر الدرفيل 17 سم
نوع الدرفيل ماسورة مجوّفة بسمك 10 ملى
الموتور 3 حصان
يُركَّب على خط 1.5 طن/ساعة
الاستعمال علف الدواجن — يُتخطّى فى علف المواشى
مرحلة التشغيل بعد التبريد وقبل الغربلة
الضمان 10 سنوات على الهيكل المعدنى · سنة على المستهلكات
Key features

Why choose Feed Crumbler 60 cm

  • 60 cm Feed Crumbler driven by 3 HP motor
  • 17 cm Diameter Hollow Tube Roller
  • Rated for 1.5 tph production lines
  • Bypassed in cattle feed lines
  • 10-year warranty covering the steel structure
Applications

Suitable applications

  • Producing crumbled feed in the right sizes
  • Poultry feed and early rearing stages
  • Lines that need a range of pellet sizes
Video

Product video

Illustrative video of the machine — the size shown may differ · Commentary in Arabic — the machine speaks for itself
Suggestions

Related products

Feed Screens
Main product

Feed Screens

نوع المعدة: غربال أعلاف راحوى (ترددى)

Oscillating feed screens in three sizes from 75×150 to 125×250 cm, separating fines and oversize so only uniform pellets reach the bag.

Request a quote
Details Quote
Feed Crumblers
Main product

Feed Crumblers

نوع المعدة: مفتت أعلاف (كرامبلر)

Feed crumblers in three sizes from 60 to 100 cm, breaking pellets after cooling to the size each growth stage needs.

Request a quote
Details Quote
Feed Crumbler 100 cm
Feed crumblers

Feed Crumbler 100 cm

نوع المعدة: مفتت أعلاف (كرامبلر)

A 100 cm feed crumbler with a 10 hp motor for 5 to 7 t/h lines. Roller Ø24 cm, solid cast iron.

Request a quote
Details Quote
Feed Crumbler 80 cm
Feed crumblers

Feed Crumbler 80 cm

نوع المعدة: مفتت أعلاف (كرامبلر)

A 80 cm feed crumbler with a 4 hp motor for 3 t/h lines. Roller Ø17 cm, hollow tube with a 10 mm wall.

Request a quote
Details Quote
FAQ

Quick answers to the most common questions

What are the uses of Feed Crumbler 60 cm?
Main applications: Producing crumbled feed in the right sizes, Poultry feed and early rearing stages, Lines that need a range of pellet sizes.
What are the key technical specifications of Feed Crumbler 60 cm?
Machine type: Feed crumbler, Size: 60 cm, Use: Crumbling pellets, Stage in the line: After pelleting and cooling, Operating strengths: A uniform size - suits every rearing stage - less waste. The full table is shown on the page.
How do I get a price for Feed Crumbler 60 cm?
Quote product code P022 when you get in touch. Contact us on WhatsApp at 01113739996 or send a request from the quote page. The sales team replies during working hours: Saturday to Thursday, 9 am to 5 pm.
