Product Details

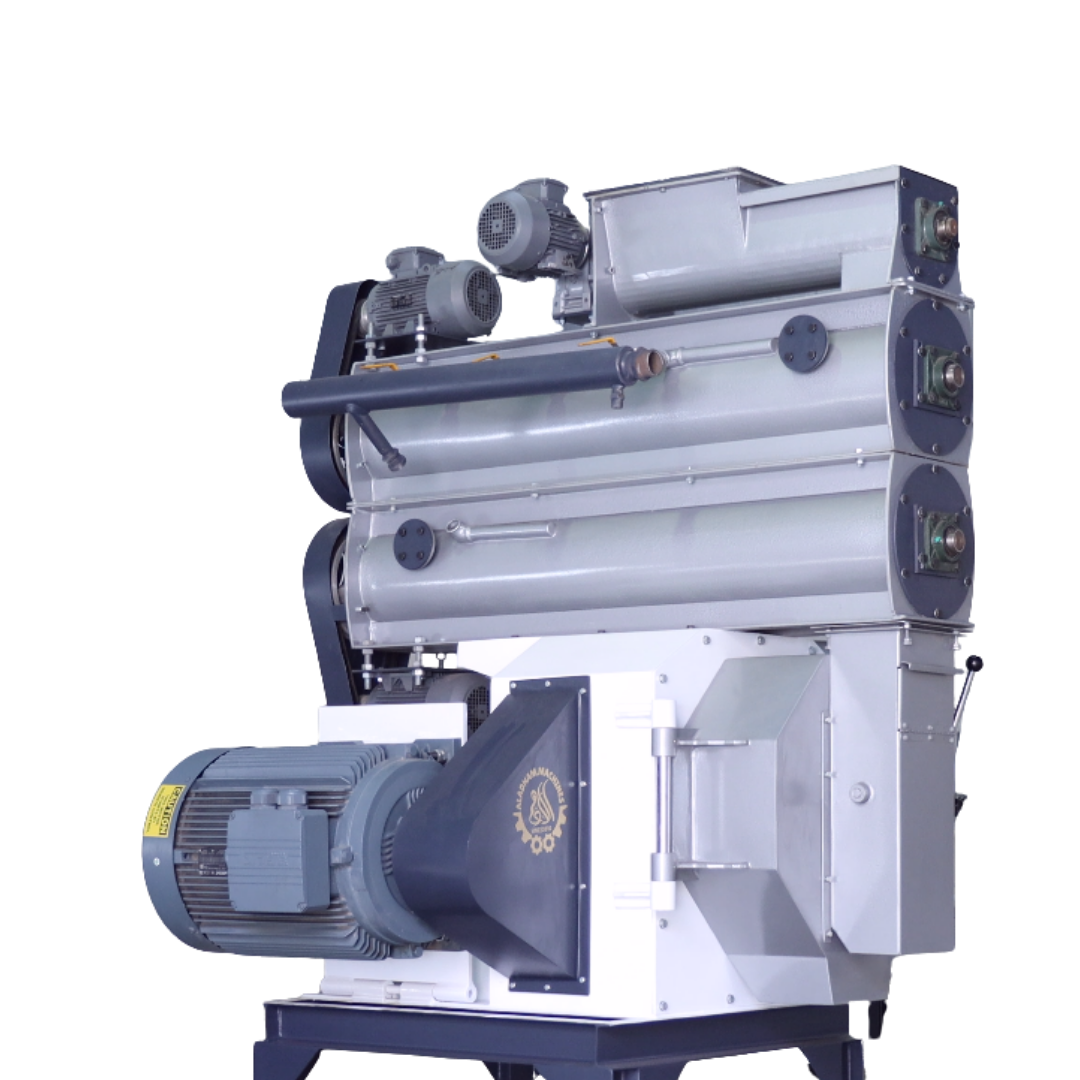

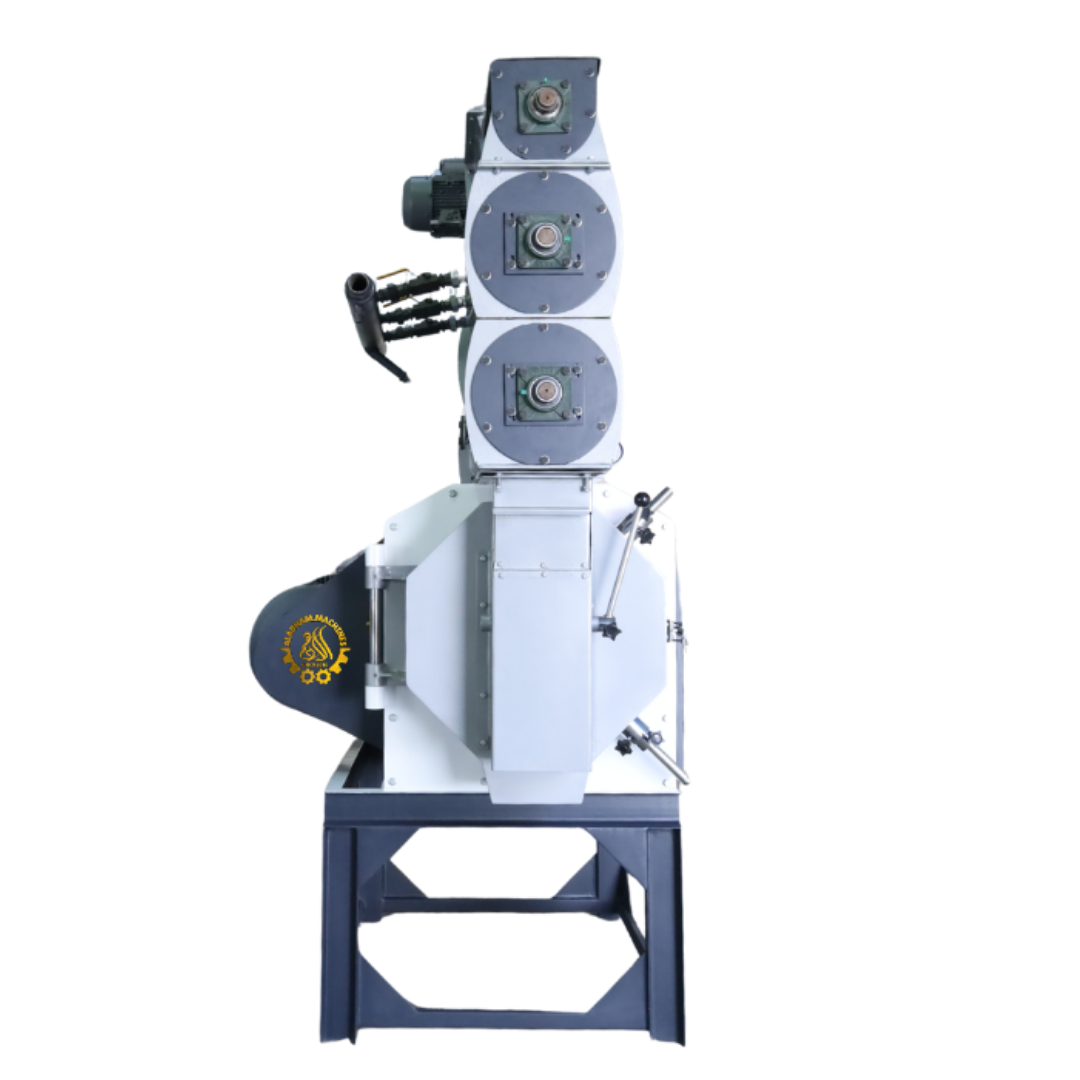

Feed Pellet Mill 3 t/h

A 3 t/h pellet mill for medium-sized mills, designed to run inside a feed production line.

In short

Feed Pellet Mill 3 t/h is manufactured by the Al-Adham Feed Equipment Factory (code P008). Its production capacity is 3 t/h. It runs on a main motor of 60 hp. Build material: 304 stainless steel. Used in Producing pelleted feed for poultry, livestock and fish, Medium-capacity feed production lines.

  • Capacity3 t/h
  • Electrical power (main motor)60 hp
  • Number of conditioners2
  • Conditioner motor rating3 hp each

Feed Pellet Mill 3 t/h

The Al-Adham 3 t/h pellet mill turns feed into pellets efficiently and reliably. It uses twin conditioning and a precise 304 stainless feeder that resists steam and rust, giving continuous running at a steady output — a good fit for poultry, livestock and fish feed lines.

  • Capacity: 3 t/h
  • Electrical power (main motor): 60 hp
  • Number of conditioners: 2
  • Conditioner motor rating: 3 hp each
Request a Quote All Products
3D model

Explore the machine from every angle

Drag with the mouse to rotate, scroll to zoom

The model rotates automatically — click and drag to control it
Technical specifications

Every product detail in one table

Specification Value
Capacity 3 t/h
Electrical power (main motor) 60 hp
Number of conditioners 2
Conditioner motor rating 3 hp each
Feeder motor 1.5 hp
Material (feeder, conditioner, door) 304 stainless steel
Steel thickness 8 to 30 mm
Die size 320 mm
Key features

Why choose Feed Pellet Mill 3 t/h

  • High output: up to 3 tonnes per hour, an ideal choice for raising production efficiency.
  • Strong motor: a 60 hp main motor for continuous, efficient running.
  • Precise feeding: a 304 stainless feeder with a 1.5 hp motor for accurate, even feeding.
  • Twin conditioning: two conditioners, each with its own 3 hp motor, for the best cooking and mash uniformity.
  • Excellent steam resistance: feeder, conditioner and door made entirely of 304 stainless to resist steam and extend the press's life.
  • Easy maintenance and greasing: servicing and greasing are done from the outside, with a design that avoids dismantling parts.
  • Rugged frame: the outer body is high-grade steel, 8 to 30 mm thick, to take hard duty.
  • Large die: a 320 mm die for strong performance and a longer service life.
Applications

Suitable applications

  • Producing pelleted feed for poultry, livestock and fish
  • Medium-capacity feed production lines
  • Projects that need steady uniformity and high pellet quality
  • Farms and feed distributors that need continuous running
Suggestions

Related products

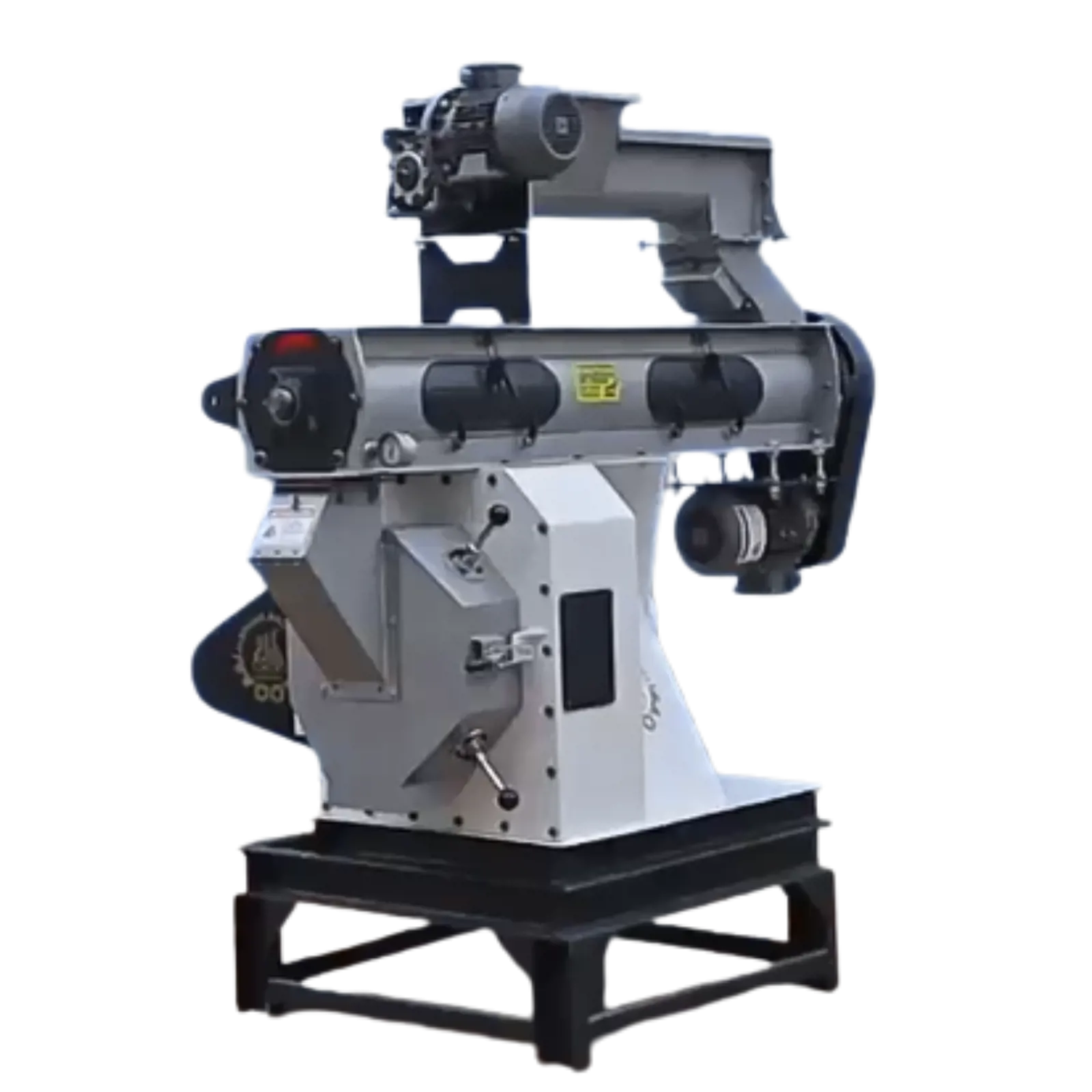

Al-Adham 250D-1500K Pellet Mill (1.5 t/h)
Feed pellet mills

Al-Adham 250D-1500K Pellet Mill (1.5 t/h)

Model: 250D-1500K

A 250D-1500K pellet mill rated 1 to 1.5 t/h, built with steam conditioning and a stainless steel feeder — a good fit for small and medium mills.

Request a quote
Details Quote
FAQ

Quick answers to the most common questions

What is the capacity of Feed Pellet Mill 3 t/h?
Capacity: 3 t/h. A 3 t/h pellet mill for medium-sized mills, designed to run inside a feed production line.
What is the motor rating of Feed Pellet Mill 3 t/h?
Electrical power (main motor): 60 hp. It also includes: Conditioner motor rating 3 hp each, Feeder motor 1.5 hp.
What are the uses of Feed Pellet Mill 3 t/h?
Main applications: Producing pelleted feed for poultry, livestock and fish, Medium-capacity feed production lines, Projects that need steady uniformity and high pellet quality, Farms and feed distributors that need continuous running.
What is the build material of Feed Pellet Mill 3 t/h?
Material (feeder, conditioner, door): 304 stainless steel. Steel thickness: 8 to 30 mm.
What are the key technical specifications of Feed Pellet Mill 3 t/h?
Capacity: 3 t/h, Electrical power (main motor): 60 hp, Number of conditioners: 2, Conditioner motor rating: 3 hp each, Feeder motor: 1.5 hp, Material (feeder, conditioner, door): 304 stainless steel. The full table is shown on the page.
How do I get a price for Feed Pellet Mill 3 t/h?
Quote product code P008 when you get in touch. Contact us on WhatsApp at 01113739996 or send a request from the quote page. The sales team replies during working hours: Saturday to Thursday, 9 am to 5 pm.
