Production line details

Feed Production Line 3 t/h — Double Dosing

A fully automatic 3 t/h line with two dosing hoppers — precise control and consistent quality.

3 t/h Capacity
Two bins + electronic scale Dosing system
Pelleted Feed type
Feed Production Line 3 t/h — Double Dosing
In short

Feed Production Line 3 t/h — Double Dosing A fully automatic 3 t/h line with two dosing hoppers — precise control and consistent quality.

  • Capacity3 t/h
  • Dosing systemTwo bins + electronic scale
  • Feed typePelleted
  • Number of stages15 stages
From raw material to the sack

How the feed moves through the line

Every stage and its machine. Tap any machine for its specifications and sizes.

Intake and grinding

First screw conveyor See Screw Conveyors for Feed Mills

Moves raw material from the intake point to the feed bin.

Raw material bin See Feed Silos

Sits directly above the hammer mill and feeds it by gravity.

Feeder

Between bin and mill — it sets the feed rate so the mill neither chokes nor runs empty.

Hammer mill See Feed Hammer Mills

Grinds the raw material to the fineness the feed type calls for.

Dosing and mixing

Screw to the dosing bins See Screw Conveyors for Feed Mills

Takes the ground material from under the mill to the dosing bin.

2 dosing bins See Feed Silos

The economical route: fewer bins and simpler running, with the same weighing accuracy.

Dosing scale See Feed Dosing Scales

In front of the bins rather than under them, fed by a screw from the bin.

Airlock See Airlocks for Feed Mills

Between scale and mixer when the scale sits above it — it stops air blowback.

Fitted when the scale sits above the mixer

Mixer See Feed Mixers

Blends the mix to full homogeneity.

Pressing and cooling

Transfer to the press See Screw Conveyors for Feed Mills

From the mixer to the press bin.

Screw or elevator — depending on a horizontal or vertical layout

Pellet press See Feed Pellet Mills

Turns the mix into pellets of the required size.

Cooler See Feed Coolers

Brings the pellet temperature down and sets its hardness.

Directly under the press, or fed by a belt depending on the layout

Crumbler For poultry feed See Feed Crumblers

Breaks the pellet down to chick size. Not fitted on cattle feed lines.

Finishing and bagging

Screen See Feed Screens

Sorts out the required size and returns fines to the press. Sits above the product bin.

Reached by elevator or belt — depending on capacity and layout

Bagging See Packing Machines for Feed Mills

By hand from under the product bin, or with an automatic bagging machine.

Manual or automatic

3 Ton/Hour Feed Production Line – 2-Batching

A feed production line with a capacity of up to 3 tons per hour, running a 2-batching system. It covers grinding the raw materials, weighing, mixing, pelleting, and cooling. A crumbler can be added when needed to produce crumbled feed for poultry.

Production Line Specifications

SpecificationDetails
Production capacity3 tons/hour
Batching system2 batching bins + electronic scale

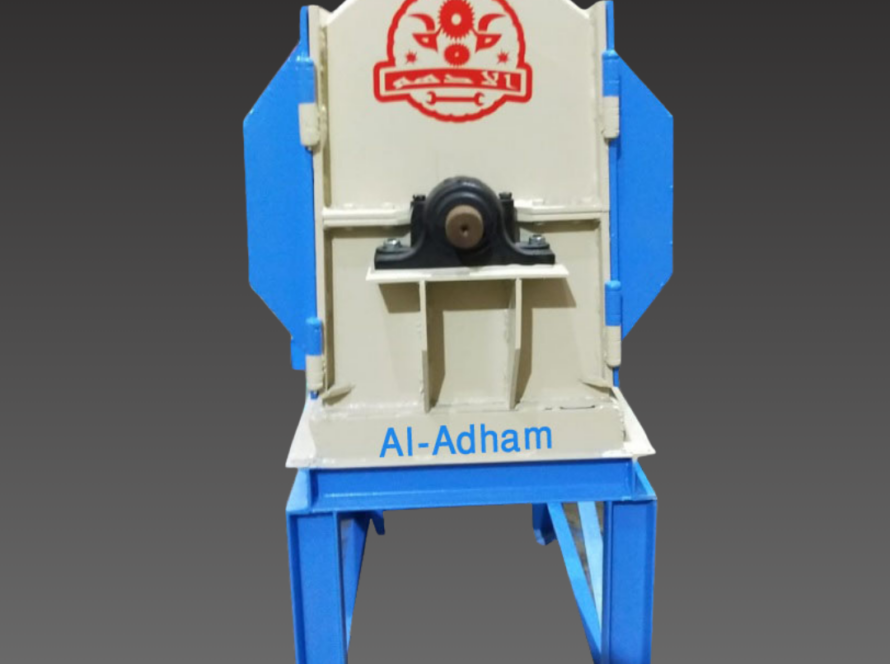

Grinder power30 HP
Feeder length80 cm
Capacity of each batching bin3 tons
Batching scale capacity1 ton

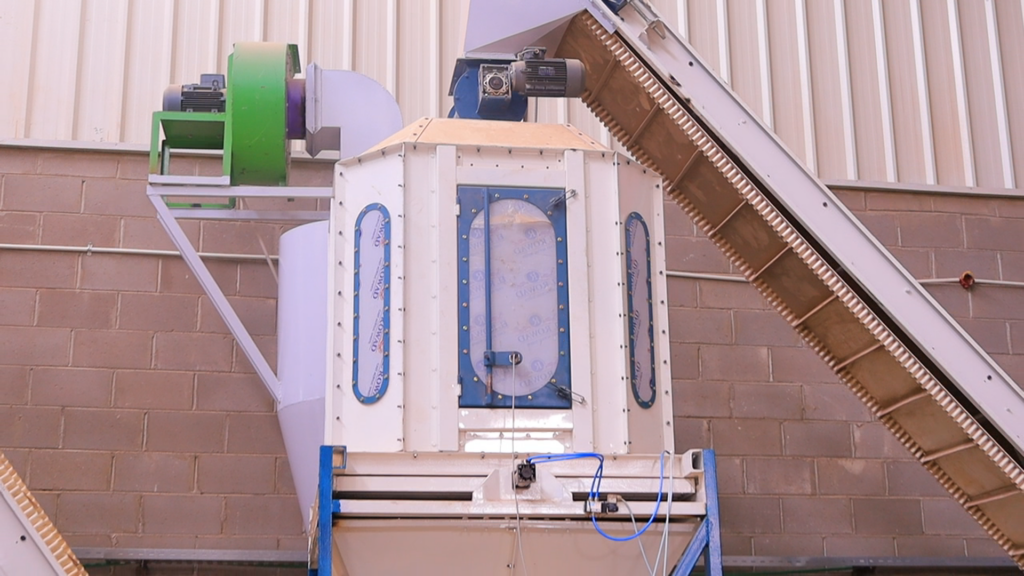

Mixer capacity1 ton

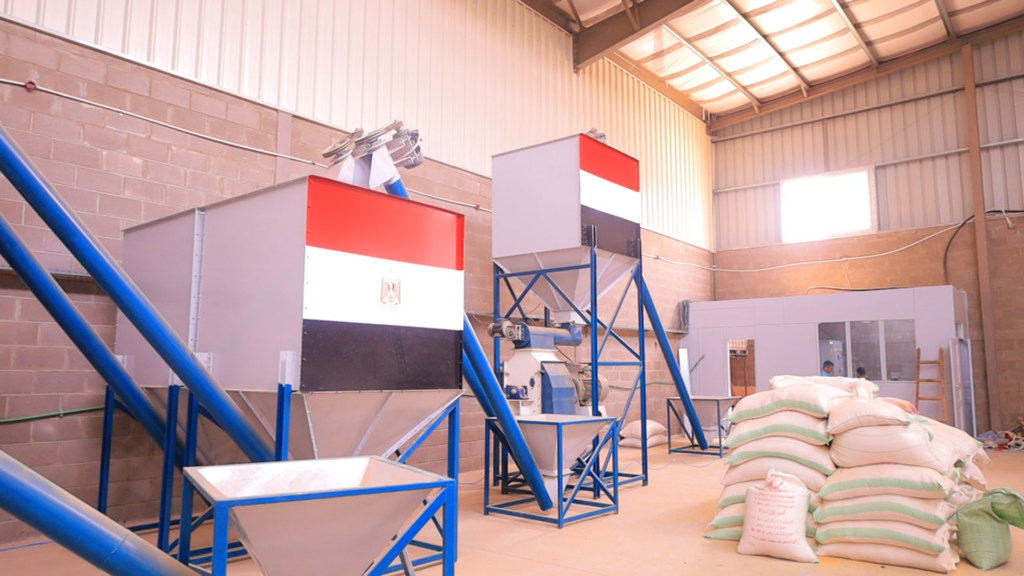

Pellet mill size320
Pellet mill production capacity3 tons/hour

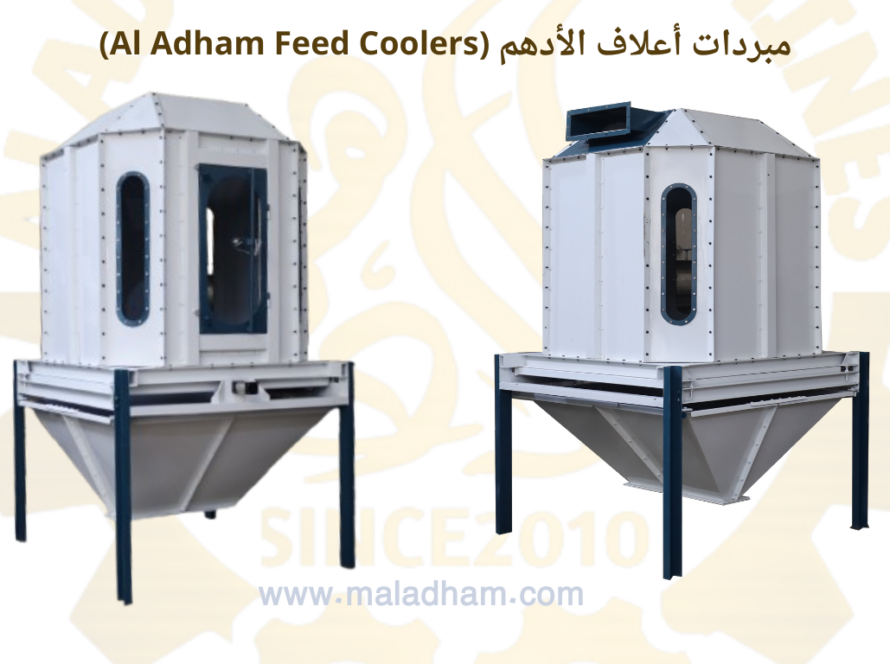

Cooler length120 cm
Crumbler size80 cm – optional
Pellet mill bin capacity3 tons
Finished product bin capacity3 tons

Production Line Components

  1. First Screw Conveyor: Moves the raw materials from the receiving point to the raw material bin.
  2. Raw Material Bin: Receives the raw materials and feeds the grinder.
  3. Feeder: Regulates the entry of raw materials into the grinder.
  4. Grinder: Grinds the raw materials to the size suited to feed manufacturing.
  5. Transfer Screw Conveyor to Batching: Moves the ground material to the batching bins.
  6. Two Batching Bins: Receive the materials to prepare them before weighing according to the required feed formula.
  7. Batching Scale: Determines the weight of the ingredients required before they move to the mixer.
  8. Air Gate: Helps discharge the material from the scale into the mixer, when needed depending on the equipment layout.
  9. Mixer: Mixes the ingredients after they are weighed to obtain a homogeneous mix.
  10. Moving the Mix to the Pellet Mill: Moves the mixed feed from the mixer to the pellet mill bin, using a screw conveyor or a bucket elevator depending on the line design.
  11. Pellet Mill: Compresses the mixed feed and shapes it into pellets.
  12. Cooler: Lowers the temperature of the pellets after pelleting.
  13. Crumbler – Optional: Crumbles the pellets to produce the crumbled feed used in poultry feeds.
  14. Screener: Separates the fines from the final feed pellets, and the fines can be returned to the pelleting stage depending on the line design.
  15. Packing: The feed is packed from the finished product bin, manually or with an automatic packing machine, depending on the agreed setup.

How the Production Line Works

The raw materials go through the following stages:

  1. Moving the raw materials to the raw material bin.
  2. Grinding the raw materials with the grinder.
  3. Moving the ground material to the batching bins.
  4. Weighing the ingredients with the batching scale.
  5. Mixing the ingredients inside the mixer.
  6. Moving the mix to the pellet mill bin.
  7. Pelleting the feed and shaping it into pellets.
  8. Cooling the pellets after pelleting.
  9. Using the crumbler when needed to produce crumbled feed.
  10. Screening the product and separating the fines.
  11. Storing and packing the finished product.

The 2-Batching System

The line relies on two batching bins and one electronic scale to prepare and weigh the ingredients according to the required feed formula before they enter the mixer.

Producing Pellets and Crumbled Feed

The line produces feed as pellets after pelleting and cooling. A crumbler can be added after the cooler to produce the crumbled feed used in poultry feeds.

Line Layout Inside the Plant

The equipment can be arranged to suit the plant area and the installation plan, with the path the material takes between production stages determined according to the line design.

Request a 3 Ton/Hour Feed Production Line – 2-Batching

Contact Al-Adham to learn the details of the line and its equipment, and to determine the layout suited to the plant area and production needs.

Technical data

Line specifications

Specification Value
Capacity 3 t/h
Dosing system Two bins + electronic scale
Feed type Pelleted
Number of stages 15 stages
Why this line

What it gives you

  • Two dosing bins with an electronic scale — precise control and even quality.
  • Continuous running with no stops between stages.
  • Designed around your floor area and layout, horizontal or vertical.
  • Every machine built in our own works — spare parts always available.
  • Installation, commissioning, operator training and after-sales follow-up.

Want a line like this?

Send us your floor area and the capacity you need, and we will come back with a drawing and a price.

Request a Quote See the other lines
FAQ

Quick answers to the most common questions

What is Feed Production Line 3 t/h — Double Dosing?
A fully automatic 3 t/h line with two dosing hoppers — precise control and consistent quality.
Does Feed Production Line 3 t/h — Double Dosing include installation and commissioning?
Al-Adham supplies, installs, commissions and trains your operators, alongside maintenance and after-sales service. Set out the scope you need when you request a quote.
How do I know whether Feed Production Line 3 t/h — Double Dosing suits my project?
A production line is chosen by the capacity you need in tonnes per hour, the type of feed (poultry, livestock or fish) and the space available on site. Contact us on WhatsApp at 01113739996 or send a request from the quote page. The sales team replies during working hours: Saturday to Thursday, 9 am to 5 pm.
