Production line details

Feed Production Line 3 t/h — Single Dosing

An economical single dosing-scale system at 3 t/h — higher-rated equipment and production flexibility.

3 t/h Capacity
One bin + scale Dosing system
Pelleted Feed type
Feed Production Line 3 t/h — Single Dosing
In short

Feed Production Line 3 t/h — Single Dosing An economical single dosing-scale system at 3 t/h — higher-rated equipment and production flexibility.

  • Capacity3 t/h
  • Dosing systemOne bin + scale
  • Feed typePelleted
  • Number of stages15 stages
From raw material to the sack

How the feed moves through the line

Every stage and its machine. Tap any machine for its specifications and sizes.

Intake and grinding

First screw conveyor See Screw Conveyors for Feed Mills

Moves raw material from the intake point to the feed bin.

Raw material bin See Feed Silos

Sits directly above the hammer mill and feeds it by gravity.

Feeder

Between bin and mill — it sets the feed rate so the mill neither chokes nor runs empty.

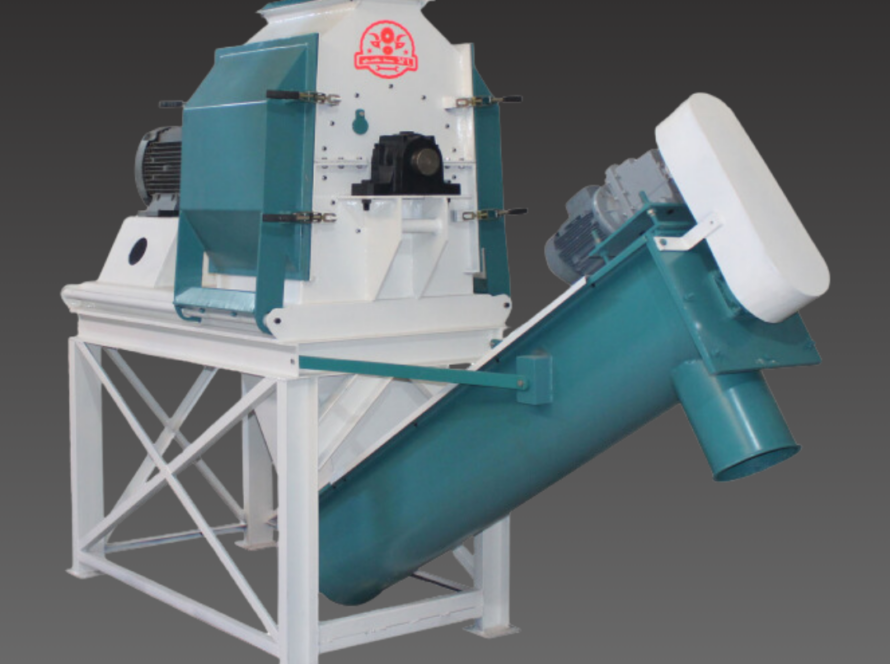

Hammer mill See Feed Hammer Mills

Grinds the raw material to the fineness the feed type calls for.

Dosing and mixing

Screw to the dosing bins See Screw Conveyors for Feed Mills

Takes the ground material from under the mill to the dosing bin.

One dosing bin See Feed Silos

The economical route: fewer bins and simpler running, with the same weighing accuracy.

Dosing scale See Feed Dosing Scales

In front of the bins rather than under them, fed by a screw from the bin.

Airlock See Airlocks for Feed Mills

Between scale and mixer when the scale sits above it — it stops air blowback.

Fitted when the scale sits above the mixer

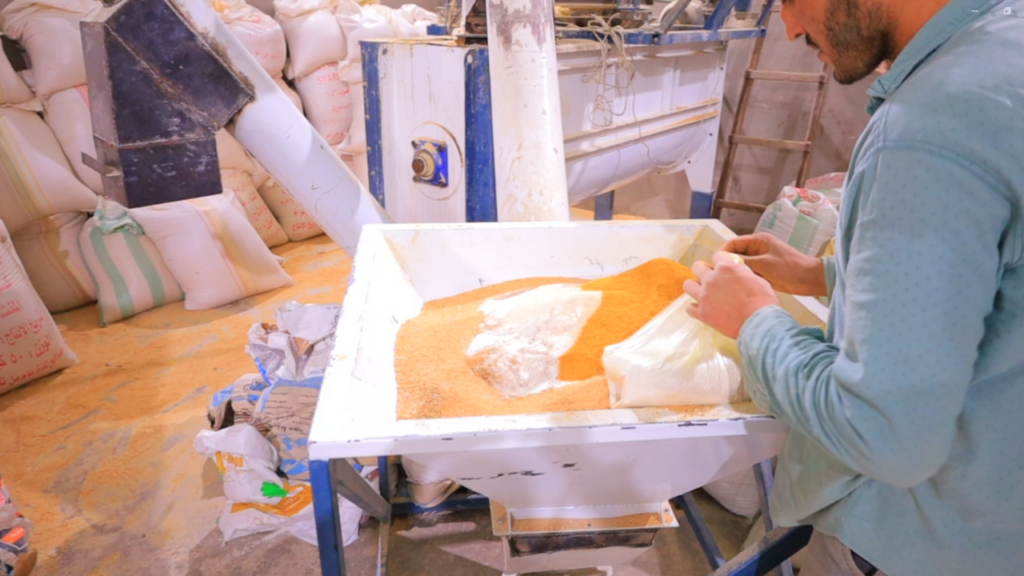

Mixer See Feed Mixers

Blends the mix to full homogeneity.

Pressing and cooling

Transfer to the press See Screw Conveyors for Feed Mills

From the mixer to the press bin.

Screw or elevator — depending on a horizontal or vertical layout

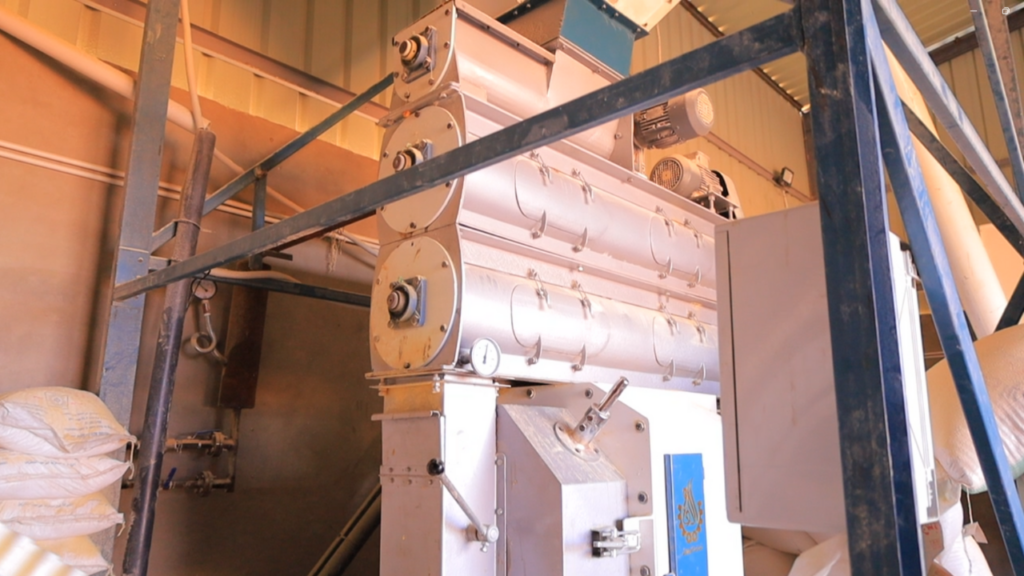

Pellet press See Feed Pellet Mills

Turns the mix into pellets of the required size.

Cooler See Feed Coolers

Brings the pellet temperature down and sets its hardness.

Directly under the press, or fed by a belt depending on the layout

Crumbler For poultry feed See Feed Crumblers

Breaks the pellet down to chick size. Not fitted on cattle feed lines.

Finishing and bagging

Bagging See Packing Machines for Feed Mills

By hand from under the product bin, or with an automatic bagging machine.

Manual or automatic

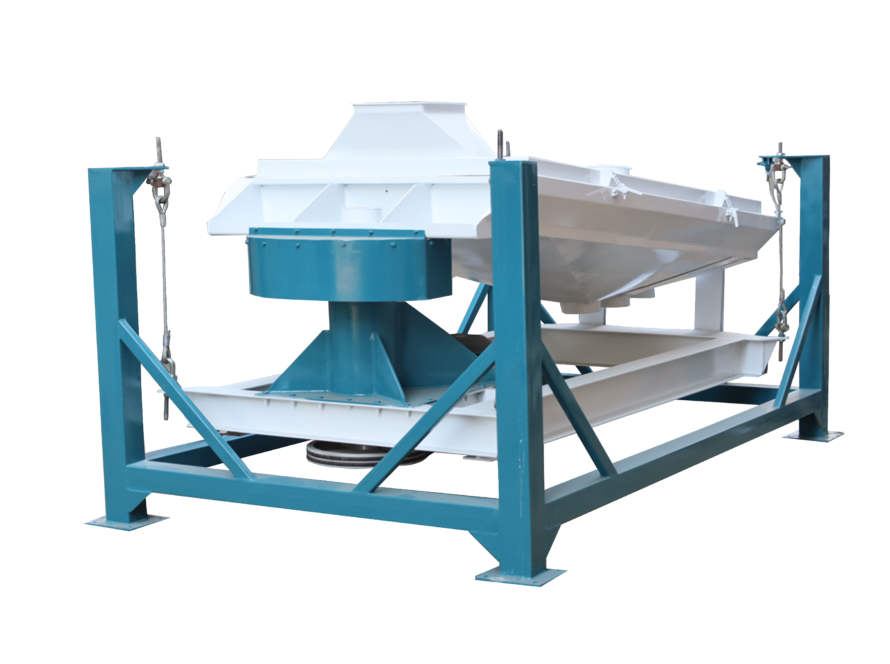

Screen See Feed Screens

Sorts out the required size and returns fines to the press. Sits above the product bin.

Reached by elevator or belt — depending on capacity and layout

3 Ton/Hour Feed Production Line – 1-Batching

A feed production line with a capacity of up to 3 tons per hour, running a 1-batching system. It covers grinding the raw materials, weighing, mixing, pelleting, and cooling, with the option to add a crumbler to produce crumbled feed for poultry.

Production Line Specifications

SpecificationDetails
Production capacity3 tons/hour
Batching system1-batching
Grinder power30 HP
Feeder length80 cm
Mixer capacity1 ton
Mixer internal dimensions300 × 90 cm
Pellet mill size320
Cooler length120 cm
Crumbler size80 cm – optional
Pellet mill bin capacity3 tons
Finished product bin capacity3 tons

Production Line Components

  1. First Screw Conveyor: Moves the raw materials to the raw material bin.
  2. Raw Material Bin: Receives the raw materials and prepares them for the grinding stage.
  3. Feeder: Regulates the entry of raw materials into the grinder.
  4. Grinder: Grinds the raw materials to the size suited to feed manufacturing.
  5. Transfer Screw Conveyor: Moves the ground material to the batching stage.
  6. Batching Scale: Used to weigh the ingredients according to the required feed formula.
  7. Air Gate: Helps discharge the material from the scale into the mixer, depending on the equipment layout.
  8. Mixer: Mixes the ingredients after they are weighed to obtain a homogeneous mix.

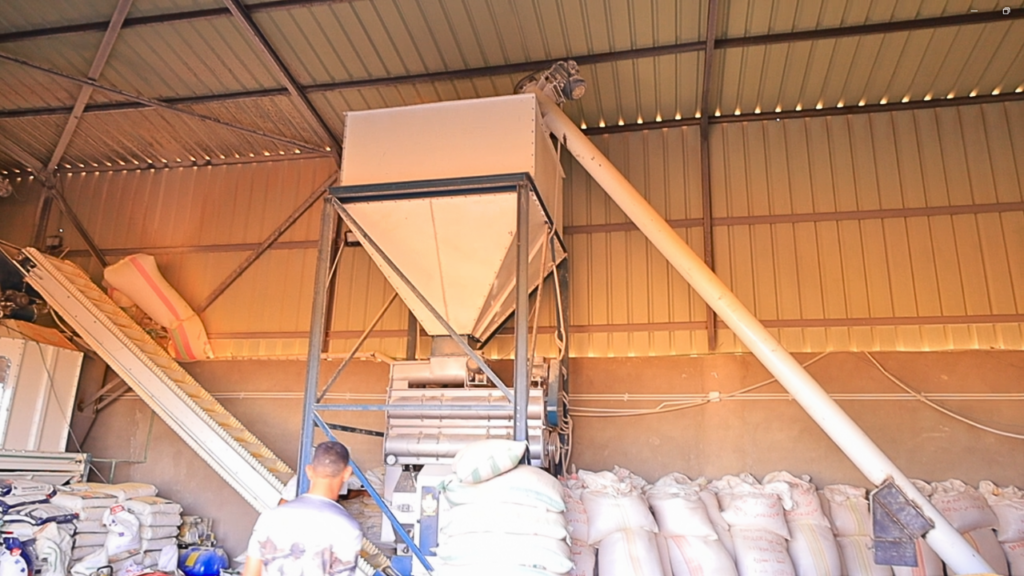

  9. Pellet Mill Bin: Receives the mixed feed and feeds the pellet mill.
  10. Pellet Mill: Compresses the feed and shapes it into pellets.
  11. Conveyor to the Cooler: Moves the pellets from the pellet mill to the cooler.
  12. Cooler: Lowers the temperature of the pellets after pelleting.
  13. Crumbler – Optional: Crumbles the pellets to produce the crumbled feed used in poultry feeds.
  14. Screener: Separates the fines from the final feed pellets, and the fines can be returned to the pellet mill depending on the line design.

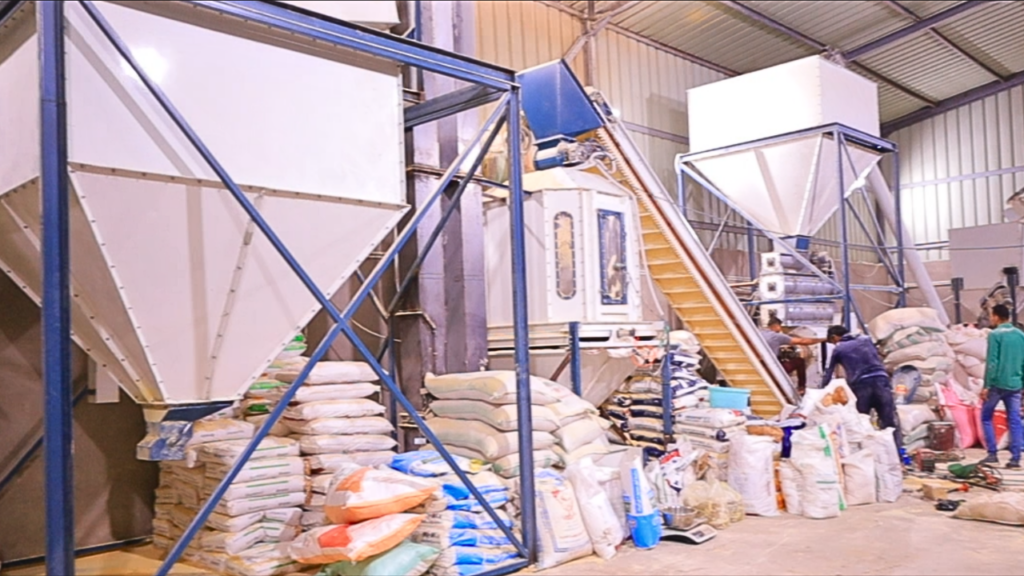

  15. Finished Product Bin: Receives the feed after the production stages are complete.

How the Production Line Works

The raw materials go through the following stages:

  1. Moving the raw materials to the raw material bin.
  2. Grinding the raw materials with the grinder.
  3. Moving the ground material to the batching scale.
  4. Weighing the ingredients according to the feed formula.
  5. Mixing the ingredients inside the mixer.
  6. Moving the mix to the pellet mill bin.
  7. Pelleting the feed and shaping it into pellets.
  8. Moving the pellets to the cooler.
  9. Using the crumbler when needed to produce crumbled feed.
  10. Screening the product and separating the fines.
  11. Collecting the final product in its designated bin.

The 1-Batching System

The line relies on a single batching system to weigh the ingredients according to the required feed formula before they move to the mixer.

Producing Pellets and Crumbled Feed

The line produces feed as pellets after pelleting and cooling. A crumbler can be added after the cooler to produce the crumbled feed used in poultry feeds.

Line Layout Inside the Plant

The equipment layout is determined according to the plant area and the installation plan, in a way that suits the path the material takes between production stages.

Request a 3 Ton/Hour Feed Production Line

Contact Al-Adham to learn the details of the production line and its equipment and to choose the suitable layout for your project.

Technical data

Line specifications

Specification Value
Capacity 3 t/h
Dosing system One bin + scale
Feed type Pelleted
Number of stages 15 stages
Why this line

What it gives you

  • An economical 3 t/h route: bigger machines with simpler dosing.
  • Continuous running with no stops between stages.
  • Designed around your floor area and layout, horizontal or vertical.
  • Every machine built in our own works — spare parts always available.
  • Installation, commissioning, operator training and after-sales follow-up.

Want a line like this?

Send us your floor area and the capacity you need, and we will come back with a drawing and a price.

Request a Quote See the other lines
FAQ

Quick answers to the most common questions

What is Feed Production Line 3 t/h — Single Dosing?
An economical single dosing-scale system at 3 t/h — higher-rated equipment and production flexibility.
Does Feed Production Line 3 t/h — Single Dosing include installation and commissioning?
Al-Adham supplies, installs, commissions and trains your operators, alongside maintenance and after-sales service. Set out the scope you need when you request a quote.
How do I know whether Feed Production Line 3 t/h — Single Dosing suits my project?
A production line is chosen by the capacity you need in tonnes per hour, the type of feed (poultry, livestock or fish) and the space available on site. Contact us on WhatsApp at 01113739996 or send a request from the quote page. The sales team replies during working hours: Saturday to Thursday, 9 am to 5 pm.
