Product Details

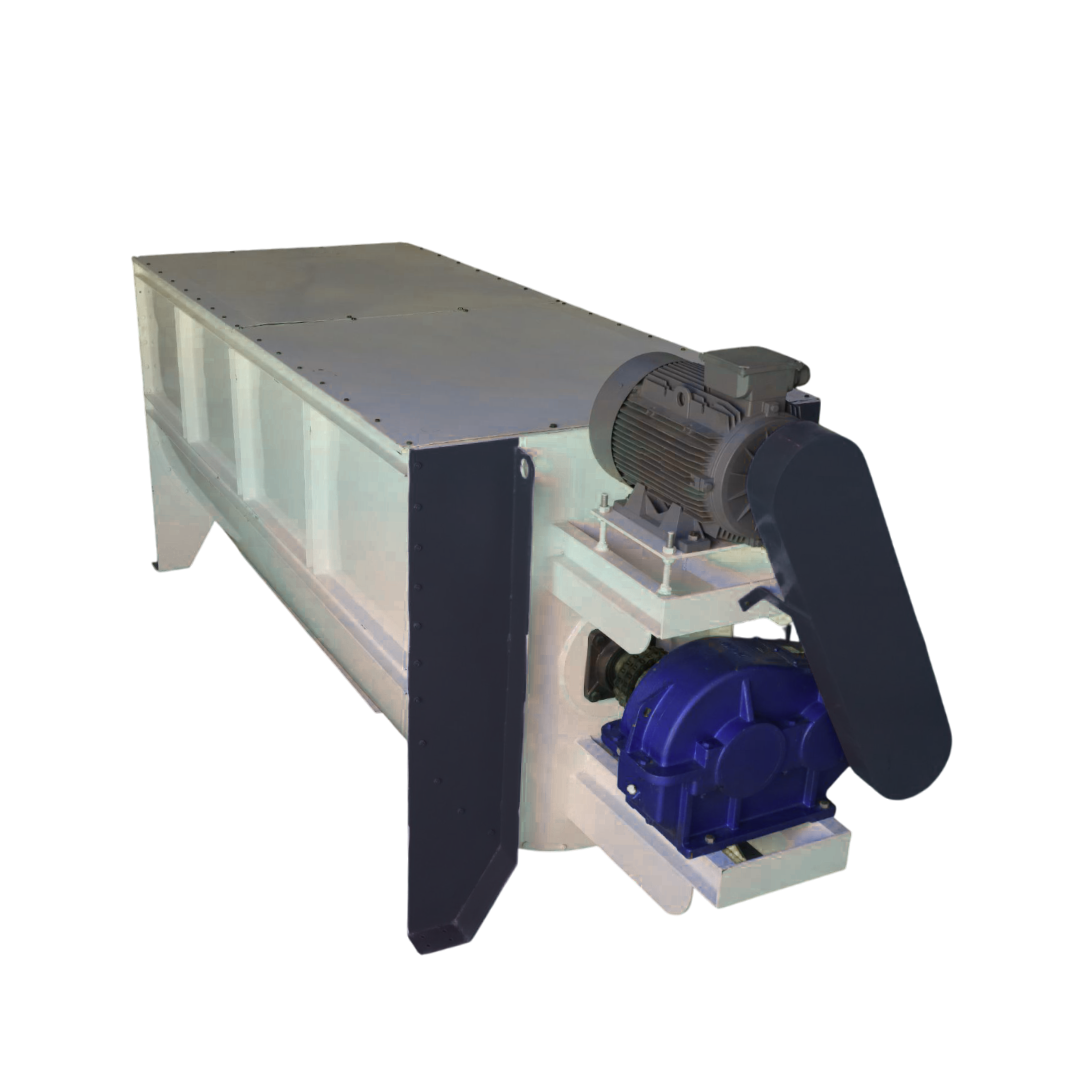

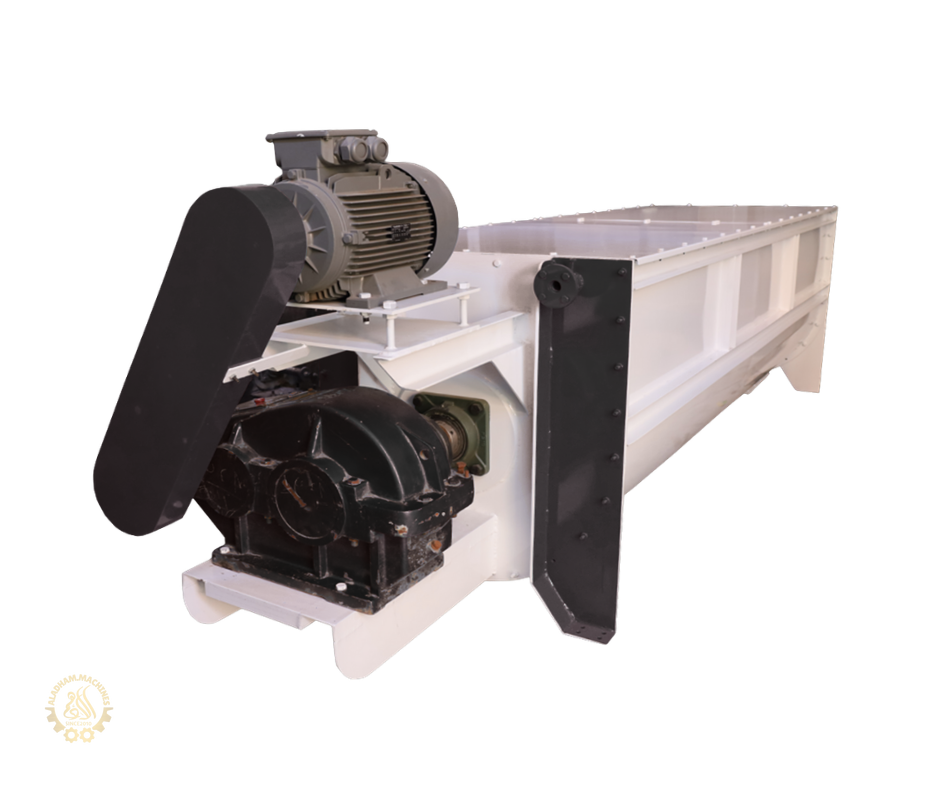

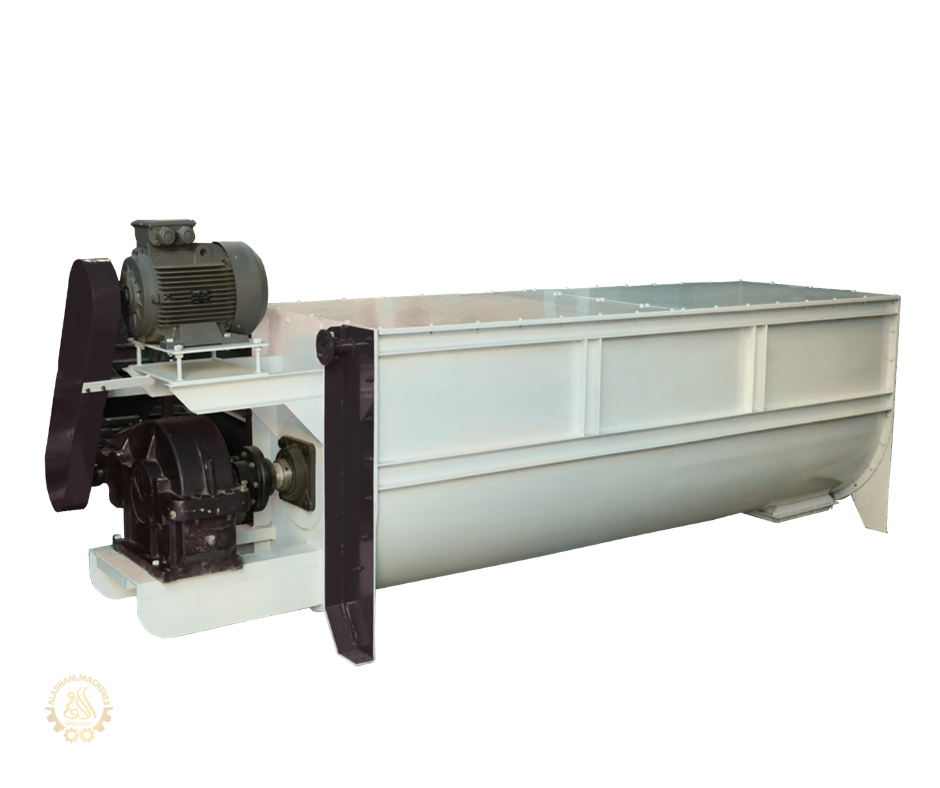

Feed Mixer 90×300 cm

A horizontal 90×300 cm feed mixer holding 1000 kg of poultry feed or 700 kg of cattle feed, driven by a 20 hp motor through a worm gearbox. Standard on 3 and 5 t/h lines.

In short

Feed Mixer 90×300 cm is manufactured by the Al-Adham Feed Equipment Factory (code P013). A horizontal 90×300 cm feed mixer holding 1000 kg of poultry feed or 700 kg of cattle feed, driven by a 20 hp motor through a worm gearbox. Standard on 3 and 5 t/h lines. Used in Mixing feed materials and additives, Preparing the mash before the pellet mill.

  • نوع المعدةخلاط أعلاف أفقى
  • المقاس90×300 سم
  • حمولة علف الدواجن1 طن
  • حمولة علف المواشى700 كيلوجرام

Feed Mixer 90×300 cm

A horizontal 90×300 cm feed mixer working after the hammer mill and before the pellet mill, blending ground material with corn, soy and additives.

Working load

It holds 1 t of poultry feed. Cattle feed comes in at 700 kg.

Cattle feed is bulkier — hay and fibre take up volume without weight — so the same mixer holds less of it by weight than it holds of poultry feed. Size the mixer by feed type, not by capacity alone.

Batch time

Three to five minutes per batch.

Drive

A 20 hp motor through a worm gearbox.

Which plant

Standard on 3 and 5 t/h lines. Larger sizes built to order.

Motors are GAMAK (Türkiye) as standard. German or Italian brands can be supplied on request, with the quotation adjusted accordingly.

Warranty

The steel structure carries a ten-year warranty. Wear parts — hammers, dies and press rollers — carry one year, since they are replaced through normal use. Motors carry their own manufacturer’s warranty.

Tell us your line capacity and feed type and we will recommend the right size. Request a quote.

  • نوع المعدة: خلاط أعلاف أفقى
  • المقاس: 90×300 سم
  • حمولة علف الدواجن: 1 طن
  • حمولة علف المواشى: 700 كيلوجرام
Request a Quote All Products
3D model

Explore the machine from every angle

Drag with the mouse to rotate, scroll to zoom

The model rotates automatically — click and drag to control it
Technical specifications

Every product detail in one table

Specification Value
نوع المعدة خلاط أعلاف أفقى
المقاس 90×300 سم
حمولة علف الدواجن 1 طن
حمولة علف المواشى 700 كيلوجرام
الموتور 20 حصان
مخفّض السرعة تمساح 400
زمن الخلطة من 3 إلى 5 دقائق
يُركَّب على مصنع 3 و5 أطنان/ساعة
مرحلة التشغيل بعد الجرش وقبل الكبس
الضمان 10 سنوات على الهيكل المعدنى · سنة على المستهلكات
Key features

Why choose Feed Mixer 90×300 cm

  • Batch Capacity: 1 Ton (Poultry Feed) / 700 kg (Cattle Feed)
  • Drive Unit: 20 HP Motor with Temsah 400 Speed Reducer (Gearbox)
  • Batch Mixing Time: 3 to 5 minutes
  • Rated for 3–5 tph capacity lines
  • 10-Year Warranty on Structural Frame
Applications

Suitable applications

  • Mixing feed materials and additives
  • Preparing the mash before the pellet mill
  • Small, medium and large feed mills
Video

Product video

Illustrative video of the machine — the size shown may differ · Commentary in Arabic — the machine speaks for itself
Suggestions

Related products

Feed Mixer 120×300 cm
Feed mixers

Feed Mixer 120×300 cm

نوع المعدة: خلاط أعلاف أفقى

A horizontal 120×300 cm feed mixer holding 1500 kg of poultry feed or 1000 kg of cattle feed, driven by a 30 hp motor through a worm gearbox. Standard on 10 t/h lines.

Request a quote
Details Quote
Feed Mixer 72×200 cm
Feed mixers

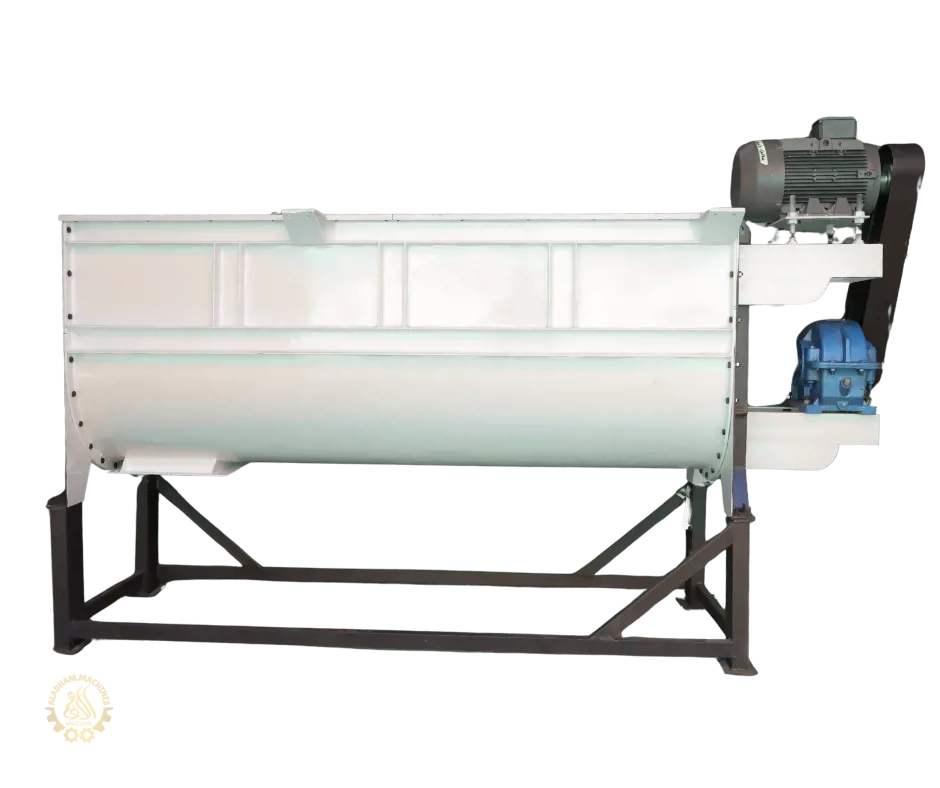

Feed Mixer 72×200 cm

نوع المعدة: خلاط أعلاف أفقى

A horizontal 72×200 cm feed mixer holding 500 kg of poultry feed or 300 kg of cattle feed, driven by a 10 hp motor through a worm gearbox. Standard on 1.5 t/h lines.

Request a quote
Details Quote
Feed Mixers
Main product

Feed Mixers

نوع المعدة: خلاط أعلاف أفقى

Horizontal feed mixers in three standard sizes, blending ground grain, soy and additives in three to five minutes. Larger sizes built to order.

Request a quote
Details Quote
Feed Pellet Mills
Main product

Feed Pellet Mills

Function: Pelleting the mash into feed pellets

Feed pellet mills rated 1.5 and 3 t/h, with steam conditioners, 250 and 320 mm dies, stainless steel contact parts and German FAG bearings.

Request a quote
Details Quote
FAQ

Quick answers to the most common questions

What are the uses of Feed Mixer 90×300 cm?
Main applications: Mixing feed materials and additives, Preparing the mash before the pellet mill, Small, medium and large feed mills.
What are the key technical specifications of Feed Mixer 90×300 cm?
Machine type: Feed mixer, Size: 90×300 cm, Use: Mixing feed components, Stage in the line: After grinding, before pelleting or packing, Operating strengths: High uniformity - balanced additive distribution - a practical design for daily running. The full table is shown on the page.
How do I get a price for Feed Mixer 90×300 cm?
Quote product code P013 when you get in touch. Contact us on WhatsApp at 01113739996 or send a request from the quote page. The sales team replies during working hours: Saturday to Thursday, 9 am to 5 pm.
