Product Details

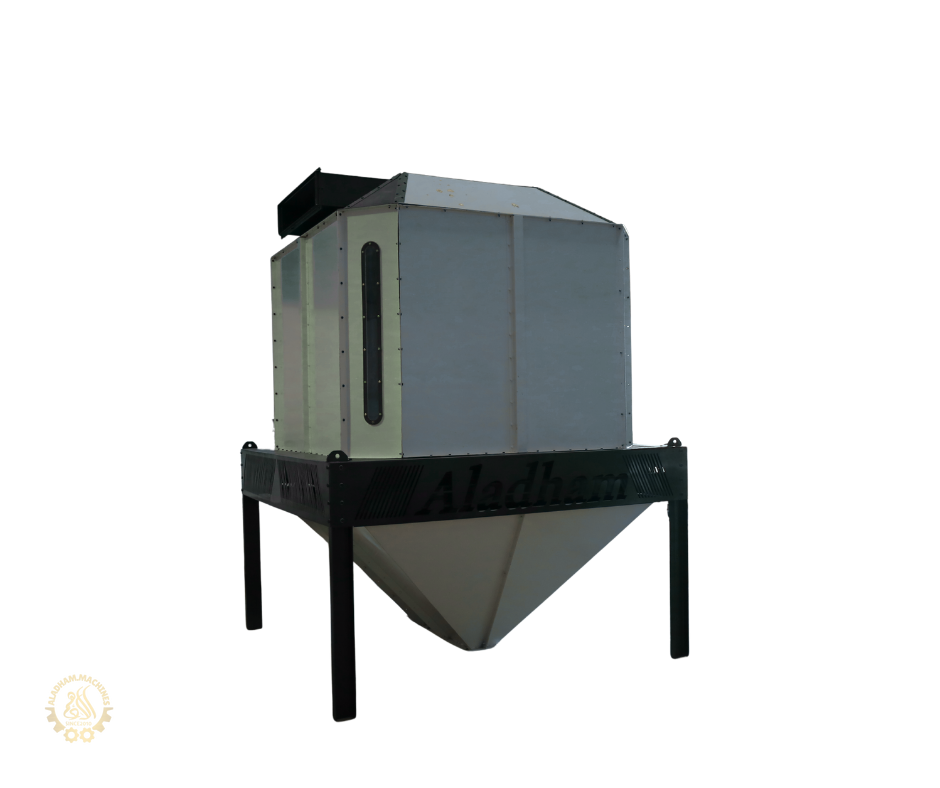

Feed Pellet Cooler 160×160 cm

A 160×160 cm feed pellet cooler for 5 to 7 t/h lines. The discharge grate runs on an Italian Ø50 cylinder; the chamber itself has no motor. Supplied as a complete unit with cyclone, blower and two airlocks.

In short

Feed Pellet Cooler 160×160 cm is manufactured by the Al-Adham Feed Equipment Factory (code P017). A 160×160 cm feed pellet cooler for 5 to 7 t/h lines. The discharge grate runs on an Italian Ø50 cylinder; the chamber itself has no motor. Supplied as a complete unit with cyclone, blower and two airlocks. Used in Cooling pelleted feed, Preparing the product for packing and storage.

  • نوع المعدةمبرد أعلاف
  • المقاس160×160 سم
  • يُركَّب على خطمن 5 إلى 7 أطنان/ساعة
  • مكوّنات الوحدةغرفة مبرد + سيكلون + بلاور + 2 إيرلوك

Feed Pellet Cooler 160×160 cm

A 160×160 cm feed pellet cooler working after the pellet mill and before packing, pulling out the excess heat and moisture so pellets hold their shape and do not clump in the bag.

Which line

Standard on 5 to 7 t/h lines.

Complete cooling unit

A cooler is not fitted alone. The complete cooling unit is the chamber, a cyclone, a blower and two airlocks: the blower draws air through the pellet bed, the cyclone separates the fines from the air before it leaves, and the airlocks discharge what is collected without letting air leak in and break the draw.

No motor on the chamber

The chamber carries no motor. The discharge grate runs on an Italian Ø50 cylinder — fewer moving parts, less maintenance.

Warranty

The steel structure carries a ten-year warranty. Wear parts — hammers, dies and press rollers — carry one year, since they are replaced through normal use. Motors carry their own manufacturer’s warranty.

Tell us your line capacity and feed type and we will recommend the right size. Request a quote.

  • نوع المعدة: مبرد أعلاف
  • المقاس: 160×160 سم
  • يُركَّب على خط: من 5 إلى 7 أطنان/ساعة
  • مكوّنات الوحدة: غرفة مبرد + سيكلون + بلاور + 2 إيرلوك
Request a Quote All Products
3D model

Explore the machine from every angle

Drag with the mouse to rotate, scroll to zoom

The model rotates automatically — click and drag to control it
Technical specifications

Every product detail in one table

Specification Value
نوع المعدة مبرد أعلاف
المقاس 160×160 سم
يُركَّب على خط من 5 إلى 7 أطنان/ساعة
مكوّنات الوحدة غرفة مبرد + سيكلون + بلاور + 2 إيرلوك
تحريك الحصيرة بستم إيطالى فاى 50
موتور على الغرفة لا يوجد — الحركة على الحصيرة وحدها
مرحلة التشغيل بعد الكبس وقبل التفتيت أو التعبئة
الضمان 10 سنوات على الهيكل المعدنى · سنة على المستهلكات
Key features

Why choose Feed Pellet Cooler 160×160 cm

  • Dimensions: 160 × 160 cm for 5 to 7 tons/hour production lines.
  • ​Complete Unit: Chamber, Cyclone, Blower, and Dual Rotary Airlocks
  • Discharge belt with an Italian-made Ø50 cylinder
  • Motorless Chamber — Reduced Maintenance
  • 10-year warranty covering the steel structure
Applications

Suitable applications

  • Cooling pelleted feed
  • Preparing the product for packing and storage
  • Continuous feed production lines
Video

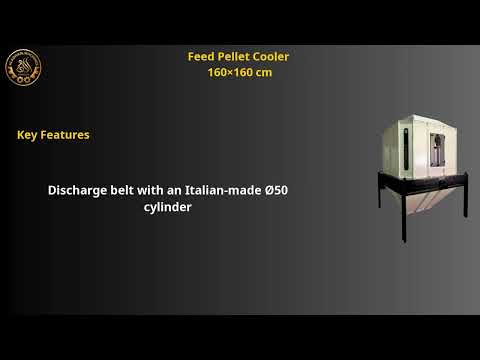

Product video

Illustrative video of the machine — the size shown may differ · Commentary in Arabic — the machine speaks for itself
