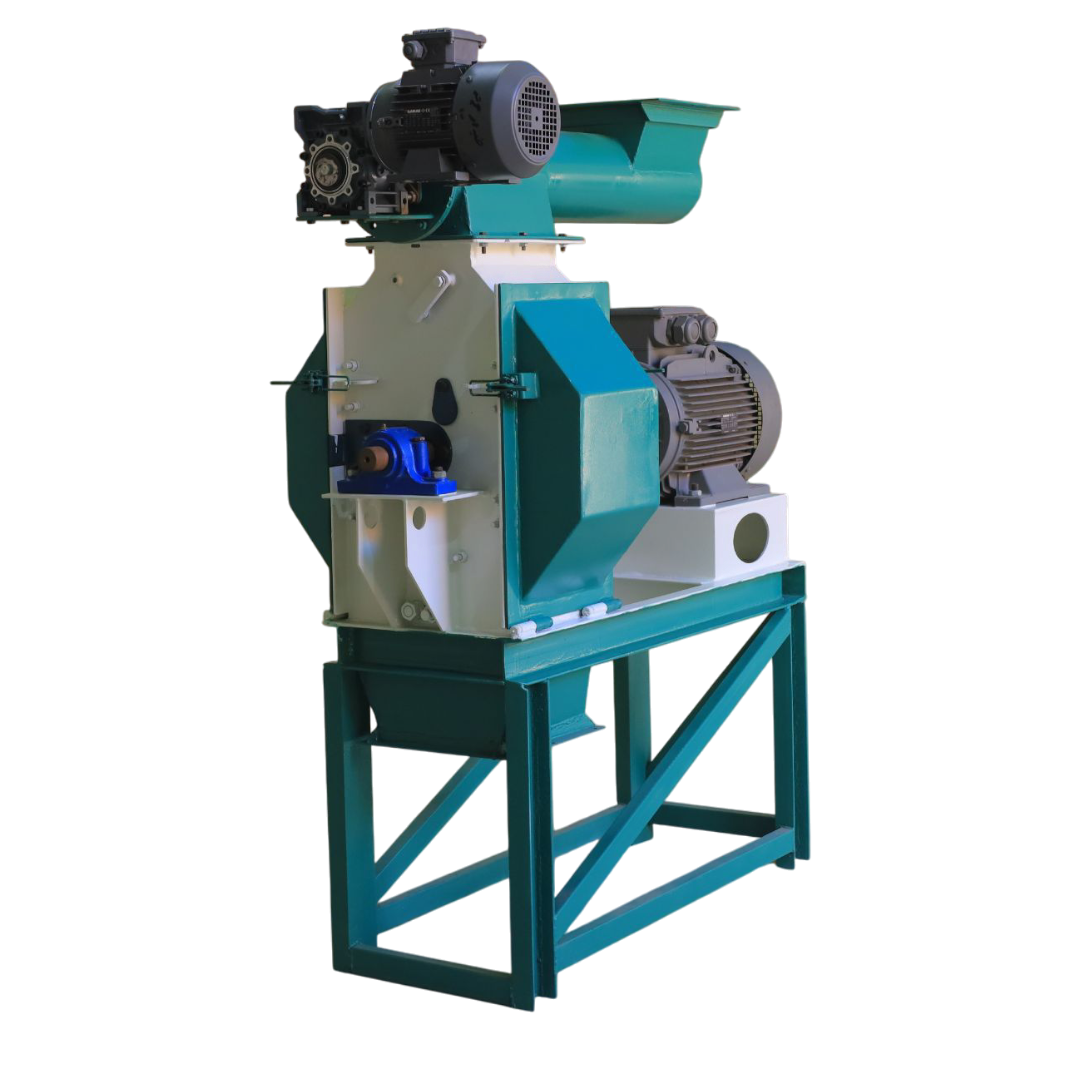

Al-Adham AD-HP15 Hammer Mill (15 hp)

The AD-HP15 feed hammer mill: 15 hp, 1 to 2 t/h, with a 43×25 cm grinding chamber.

Why quality starts here

Grinding is not a stage to economise on. Coarse material never blends evenly however long the mixer runs, and never binds properly in the pellet mill, so the pellet comes out soft. Final pellet quality starts here.

How it works

Hammers spin inside the grinding chamber and break the grain by impact. Nothing leaves the chamber but what passes the screen perforations — so screen hole size sets the grind, and changing it changes the product without changing the machine.

Feeding

Fed by an 80 cm feeder that meters material from the hopper at a steady rate, preventing overload and keeping the grind consistent — which protects the motor and steadies particle size.

Materials and maintenance

Heat-treated steel hammers, German FAG 40 mm bearings, a high-grade Turkish screen and 6 to 10 mm steel. Bolted construction throughout, so changing hammers or the screen needs no cutting and no welding.

Motors are GAMAK (Türkiye) as standard. German or Italian brands can be supplied on request, with the quotation adjusted accordingly.

Warranty

The steel structure carries a ten-year warranty. Wear parts — hammers, dies and press rollers — carry one year, since they are replaced through normal use. Motors carry their own manufacturer’s warranty.

Tell us your line capacity and feed type and we will recommend the right size. Request a quote.
