Everything You Need to Know About Feed Grinders

The feed grinder is one of the essential machines in many feed mills, because it helps reduce the size of raw materials and prepare them for the next stages, such as mixing and pelleting.

But what is a grinder? How does it work? And what affects the fineness and the output? In this article we explain the topic in a simple way.

What is a Feed Grinder?

A feed grinder is a machine used to crush and grind the raw materials used in feed production, such as corn, wheat, barley, and some other grains.

The goal is not necessarily to turn the material into a very fine powder, but to reach the right particle size for the type of feed and the way it is produced.

Why Do We Need to Grind the Raw Materials?

Raw materials arrive at the feed mill in different sizes, so they are hard to mix well if their sizes are not suitable. Grinding helps to:

• Reduce the size of the grains.
• Make the raw materials more uniform.
• Make mixing easier.
• Prepare the materials for pelleting.
• Get a suitable size for the feed particles.

How Does a Feed Grinder Work?

The idea is simple. The material enters the grinder through the feeding system, then reaches the grinding chamber.

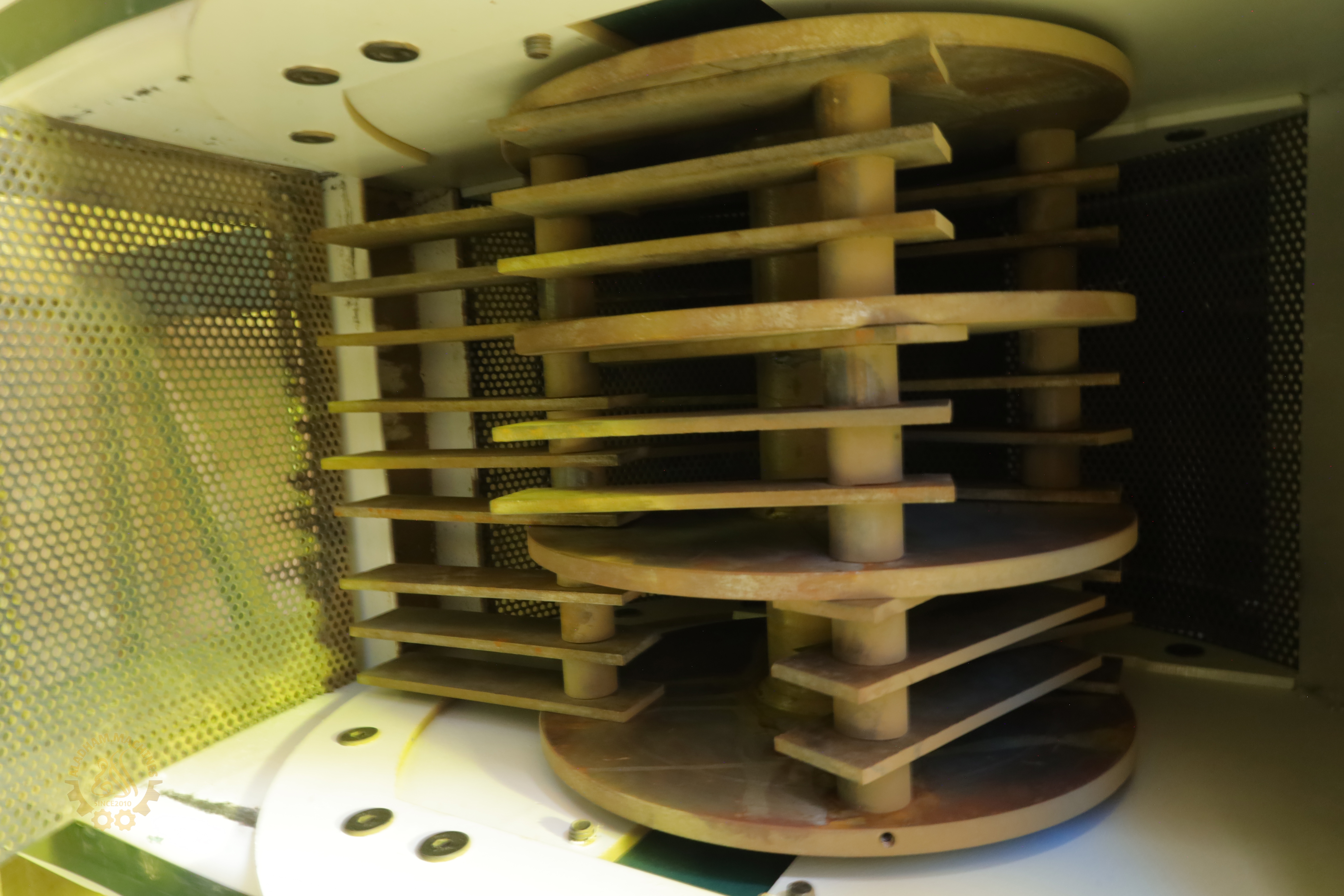

Inside the chamber there are hammers that rotate at high speed, and when the material hits them it breaks into smaller pieces. The material then passes through the screen.

Particles that have reached the right size pass through the screen openings and leave the grinder, while larger particles keep being ground until they are able to pass.

In simple terms:

Material → Hammers → Crushing → Screen → Product at the Required Size

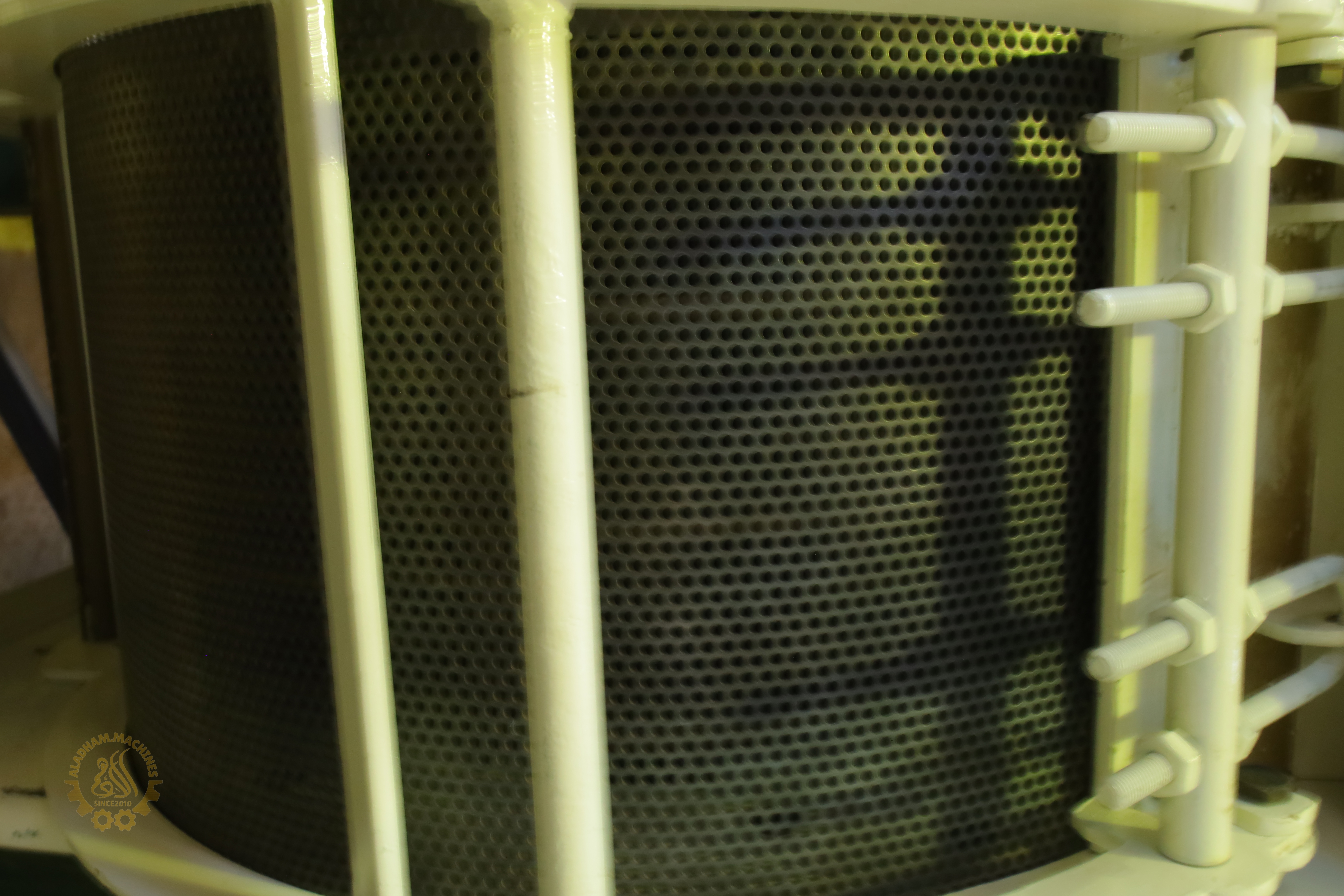

What is the Screen, and Why Is It Important?

The screen is a plate with openings of specific sizes, and it is one of the most important parts affecting the size of the output.

In general, smaller openings give smaller particles, while larger openings let larger particles through. But fineness does not depend on the screen alone; other factors also affect the result.

What Factors Affect Fineness?

The most important factors:

1. Screen opening size: As the opening size changes, so does the size of the particles that can leave the grinder.
2. Hammer rotation speed: It affects how the material is broken down, so the grinder must be run within the speeds suited to its design.
3. Hammer condition: New or well-kept hammers are better at breaking the material, and as they wear, grinding efficiency can change and output can drop.
4. Feed rate: If a large amount of material enters at once, the load on the grinder can rise and operating efficiency drops. Steady feeding helps keep the process stable.
5. Type of material: Not all grains are alike; the hardness, size, and nature of the material affect how it grinds and the final result.
6. Moisture content: High moisture can make grinding harder, and in some cases it can cause the material to stick or the screen to clog.

Is Finer Grinding Better?

Not necessarily. The goal is to reach the right size, not the smallest size possible.

The required size depends on the type of feed, the animal, the manufacturing method, and the stages that follow grinding. So there is no single screen size that suits every case.

Why Does Grinder Output Drop?

If the grinder is producing less than usual, the cause may be one or more of the following:

• The screen is clogged.
• The hammers are worn.
• Feeding is irregular.
• The material has high moisture.
• A screen with openings that are too small is being used.
• There is a problem in one of the machine's parts.
• The grinder is loaded beyond its capacity.
• The grinder is not suited to the nature of the material.

So when output drops, you should not assume that the problem is only the motor.

How Do I Know the Hammers Need Inspection or Replacement?

Signs that call for inspection:

• Reduced output.
• A clear change in the fineness of the product.
• More time needed to grind the same amount of material.
• Increased load during operation.
• Visible wear on the hammers.

The hammers should be inspected regularly rather than waiting until they are badly worn.

Why Is Maintenance Important?

Simple, regular maintenance helps keep the grinder performing well and reduces unexpected stoppages. Things that should be monitored include:

• The condition of the hammers.
• The condition of the screen.
• Bearings.
• The drive system.
• Fasteners.
• Vibration and noise levels.
• Cleaning residual material out of the grinder.

The manufacturer's instructions for each machine must also be followed.

Does Motor Power Determine Output?

No. Motor power is an important factor, but it is not the only one. Output is also affected by the type of material, screen size, moisture, feed rate, the required fineness, and the grinder's design.

So when comparing two grinders, do not look at horsepower alone. Also ask about the actual output and the conditions under which it is achieved.

How Do You Choose the Right Feed Grinder?

Before choosing a grinder, determine:

1. The required output per hour.
2. The types of material to be processed.
3. The required fineness.
4. The type of feed to be produced.
5. The size of the production line.
6. The screen sizes available.
7. Ease of maintenance and availability of spare parts.

Once these points are settled, choosing the grinder becomes much easier.

Tips for Getting the Best Performance

To keep the grinder performing well:

• Use the right screen for the material.
• Keep feeding steady.
• Inspect the hammers regularly.
• Do not run the machine above its capacity.
• Monitor the condition of the bearings and drive system.
• Keep the grinder clean.
• Check any abnormal change in sound or vibration.
• Follow the operating and maintenance instructions for the machine.

Safety When Operating the Grinder

Feed grinders have fast rotating parts, so they must be handled with care. The most important safety rules:

• Do not open the grinder while it is running.
• Disconnect the power source before maintenance.
• Do not put hands or tools inside the grinding chamber.
• Make sure the protective guards are in place.
• Prevent metal pieces or hard objects from entering with the material.
• Use suitable protective equipment during operation and maintenance.

Conclusion

A feed grinder is not just a machine for crushing grain; it is an important stage in preparing raw materials before mixing and pelleting.

The best result does not depend on motor power alone, but on a group of factors working together, the most important being: type of material + moisture + screen + hammers + feed rate + required fineness.

When choosing the right grinder, it is best to start with your actual production needs and the types of material, then choose the equipment that fits those requirements. In this way you get a more stable grinding process, a product at the required size, and more efficient operation.
