Everything You Need to Know About Feed Pellet Mills

Feed pellet mills are among the most important machines in a feed mill, because they turn the prepared mix into cohesive pellets of the required size and shape.

After the raw materials are ground and mixed, the mix moves to the pellet mill, where it is compressed and forced through the holes of the die to emerge as pellets.

But how does a feed pellet mill work? What do the die and the rollers do? And why do steam and the conditioner matter? In this article we explain it in a simple way.

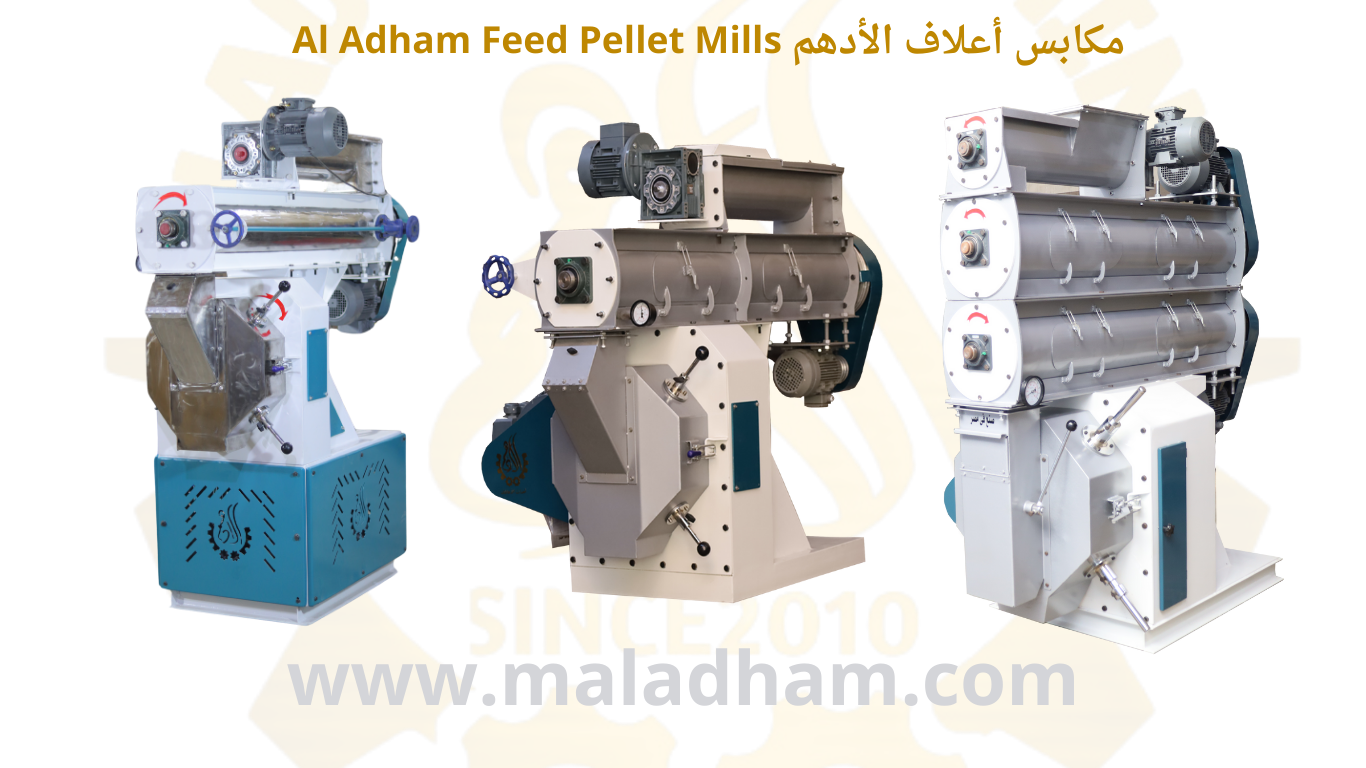

What is a Feed Pellet Mill?

A feed pellet mill is a machine used to turn a feed mix into pellets.

The mix enters the pellet mill and is pressed by the rollers inside the die, so the material comes out through the die holes in the form of pellets. In simple terms:

Mixing → Conditioner → Pellet Mill → Feed Pellets

The order of some stages varies depending on the production line design and the type of feed.

Why Is Feed Pelleted?

Turning feed into pellets has several benefits, including:

• Making feed easier to transport and store.
• Reducing the dusting-off of some fine ingredients.
• Getting pellets that are easy to handle.
• Improving the homogeneity of the final product.
• The ability to produce different pellet sizes according to the feed's needs.

Pelleted feed is used in different types of livestock and poultry production, depending on the formula and the required size.

How Does a Feed Pellet Mill Work?

Once the mix is prepared, it enters the pellet mill. The mix reaches the pelleting zone, where the rollers compress the material and force it into the die holes.

The material emerges from the other side of the die as strands of feed, which are then cut to the required length. In simple terms:

Mix → Compression by Rollers → Die Holes → Pellets

What is the Die?

The die is the part that contains the holes through which the mix is pressed.

It is one of the most important parts of the pellet mill because it directly affects the shape and size of the pellets. The diameter of the die holes is related to the diameter of the resulting pellet.

The length of the compression channel inside the die affects the pelleting conditions and the pellet's durability, so the die is chosen to suit the type of feed, the ingredients, and the required size.

What Are the Rollers?

The rollers are the parts that compress the mix and push it toward the die holes.

As they rotate, the rollers press on the layer of material in front of the die, so the material enters its holes and comes out as pellets. The condition of the rollers is very important for a stable pelleting process.

What is the Conditioner?

The conditioner is a part that comes before the pellet mill and is used to prepare the mix before it enters the pelleting zone.

In many feed lines, steam is added to the mix inside the conditioner. This helps raise the temperature of the mix, add moisture to it, and prepare it for pelleting.

But the conditioner's function is not limited to steam; the result depends on the feed formula, the operating conditions, and the conditioning time.

Why Is Steam Important in Pelleting?

Steam is one of the most important factors used to prepare a feed mix before pelleting. When steam is added appropriately, it helps to:

• Raise the temperature of the mix.
• Add moisture.
• Improve how well the material is prepared for pelleting.
• Help form more cohesive pellets in many formulas.
• Improve the efficiency of the pelleting process.

But the right amount of steam differs depending on the type of material, the feed formula, and the operating conditions. There is therefore no single amount of steam that suits all feeds.

Do All Feeds Need the Same Amount of Steam?

No. A mix's steam requirement is affected by several factors, including:

• The type of ingredients.
• Fiber content.
• The moisture already in the mix.
• The feed formula.
• The type of product.
• The pellet mill's operating conditions.

Steam and the conditioner are therefore adjusted according to the nature of the mix and the required result.

What Affects Pellet Quality?

Pellet quality does not depend on the pellet mill alone. There are several important factors, including:

1. Feed formula: Some formulas are easier to pellet than others.
2. Moisture: The right moisture helps prepare the mix for pelleting, while too much or too little moisture can affect the result.
3. Steam and conditioner: Good conditioning before pelleting helps keep production stable.
4. Die: The size of the die holes and the die design are important factors in determining the shape and production conditions of the pellets.
5. Rollers: The condition and adjustment of the rollers affect how the material is compressed.
6. Feed rate: The mix must enter the pellet mill at a rate suited to the machine's capacity.

How Is Pellet Diameter Determined?

Pellet diameter is mainly linked to the diameter of the die holes. If a die with different holes is used, pellets of different diameters can be produced.

But pellet diameter is not the only factor in choosing a die; the type of feed, the target animal, the nature of the material, and the operating conditions must also be considered.

What About Pellet Length?

Pellet length can be controlled through the cutting system as the pellets leave the die.

So we can have the same pellet diameter with a different length, depending on the cutting settings and the required product.

Why Does Pellet Mill Capacity Vary from One Feed to Another?

The same pellet mill may be able to produce a different quantity depending on the type of feed. The reason is that materials do not behave the same way during pelleting.

The formula, moisture, degree of conditioning, required pellet size, and operating conditions all affect productivity. A single output figure should therefore not be relied on for all types of feed.

What Happens If the Pellet Mill Is Overloaded?

If feeding exceeds the pellet mill's capacity, the load on the motor can rise and continuous operation can suffer. Problems that may appear include:

• Reduced productivity.
• Higher load.
• An unstable pelleting process.
• A greater chance of the pelleting zone choking under certain conditions.

The feed rate must therefore be set to match the pellet mill's capacity and the operating conditions.

What Happens If Feeding Is Too Low?

Very low feeding can push the pellet mill away from its suitable operating conditions, and may affect productivity and process stability.

The goal is therefore to reach a suitable, stable feed rate.

What Causes Poor Pellet Durability?

If the pellets crumble easily, several factors can be checked, including:

• The feed formula.
• Moisture.
• The quality of conditioning in the conditioner.
• The amount of steam.
• The type of die.
• Pelleting conditions.
• The condition of the rollers.
• The feed rate.

The pellet mill alone should therefore not be treated as the cause of the problem before the other factors are checked.

What Causes the Pellet Mill to Choke?

Choking can result from different operating conditions, such as:

• A large quantity of material entering.
• Unsuitably high moisture.
• A conditioning problem.
• Operating conditions that do not suit the mix.
• A problem in the pelleting zone.

When choking occurs, the machine must be stopped and the problem handled according to safety procedures and operating instructions.

How Do I Know the Rollers Need Inspection?

Signs that call for inspection include:

• Reduced productivity.
• A clear change in the pellet mill's performance.
• An unstable pelleting process.
• Increased load.
• Visible wear on the roller surface.

The rollers should be inspected and adjusted according to the manufacturer's instructions.

When Does the Die Need Replacing?

The die may need inspection or replacement when there is:

• Visible wear in its holes.
• A change in pelleting performance.
• Reduced productivity.
• A change in the shape or quality of the pellets.
• Damage to the die body or its holes.

The condition of the die should not be judged from productivity alone; it should be inspected together with the other parts of the pellet mill.

Why Is Maintenance Important?

Regular maintenance helps maintain the pellet mill's efficiency and reduce unexpected downtime. The most important parts to monitor include:

• The die.
• The rollers.
• Bearings.
• The drive system.
• The gearbox.
• The feeding system.
• The conditioner.
• The steam system.
• Mounting points.

Any abnormal sound or vibration during operation should also be monitored.

Tips for Getting the Best Performance from the Pellet Mill

For stable operation:

• Use a mix that suits the pellet mill.
• Keep feeding consistent.
• Adjust steam and the conditioner to the mix.
• Use the right die for the required size.
• Monitor the condition of the rollers.
• Watch the load during operation.
• Do not exceed the pellet mill's capacity.
• Carry out regular maintenance.
• Monitor pellet quality continuously.

Safety When Operating a Feed Pellet Mill

A feed pellet mill has rotating parts and parts that work under high loads and pressures, so safety procedures must be followed. The most important include:

• Do not open the machine while it is running.
• Disconnect the power source before maintenance.
• Do not try to clear a blockage while parts are moving.
• Use the protective devices built into the machine.
• Use suitable protective equipment.
• Follow the pellet mill's operating and maintenance instructions.

Frequently Asked Questions About Feed Pellet Mills

What is the function of a feed pellet mill?

To turn the prepared feed mix into pellets by compressing it and forcing it through the die holes.

What does the die do?

The die has holes through which the mix passes under pressure to form pellets.

What do the rollers do?

They compress the mix and push it into the die holes during pelleting.

What does the conditioner do?

It prepares the mix before pelleting, usually using steam to add the right heat and moisture depending on the type of mix.

Is steam always necessary?

It depends on the type of feed, the line design, and the way the line is operated. Many feed production lines use steam in the conditioner to improve how the mix is prepared before pelleting.

Does the die diameter determine the pellet diameter?

The diameter of the die holes is mainly linked to the diameter of the resulting pellet, while pellet length is affected by the cutting process after the pellets leave the die.

Why does pellet mill productivity vary?

Because productivity is affected by the type of feed, its formula, the pellet size, moisture, conditioning, the die, and operating conditions.

Why do pellets crumble after leaving the pellet mill?

The cause may be linked to the formula, moisture, conditioning, pelleting conditions, or cooling and handling, so the whole process should be checked.

Conclusion

The feed pellet mill is the stage where the prepared mix turns into pellets. Good pelleting depends on several parts and factors working together:

Mix + Conditioner + Steam + Die + Rollers + Feed Rate + Operating Conditions.

Pellet mill performance does not depend on motor power alone. Achieving stable output and good pellets requires choosing the right die, adjusting the rollers and feeding, preparing the mix properly, and paying attention to regular maintenance.

In this way you can get cohesive pellets of the required size, with more stable pellet mill operation.
